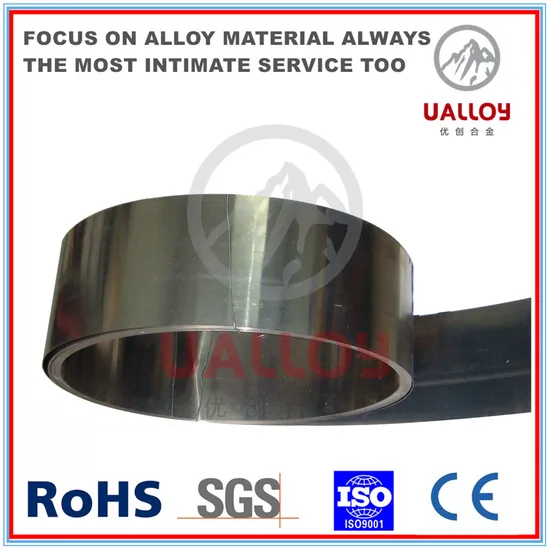

Aluchrom-O/Cr25al5 Heating Resistance Strip

Product Description

Specifications
0Cr25Al5
Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max0.06	Max 0.025	Max 0.025	Max 0.70	Max 1.0	23.0~26.0	Max 0.60	4.5~6.5	Bal.	-

Mechanical Properties

Max Continuous Service Temp	1250ºC
Resisivity at 20ºC	1.42±0.06 ohm mm2/m
Density	7.10 g/cm3
Thermal Conductivity	46.1KJ/m·h·ºC
Coefficient of Thermal Expansion	16.0×10-6/ºC
Melting Point	1500ºC
Tensile Strength	637~784 Mpa
Elongation	Min 12%
Section Variation Shrink Rate	65~75%
Repeatedly Bend Frequency	Min 5 times
Continuous Service Time	-
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Furnace resistance alloy heating wire
1. A quite reasonable price
2. Stable performance:
3 high working temperature
Furnace resistance alloy heating wire
Specification:
We specializing in Ferro-Chrome (Fe-Cr-AL) wire, Nickel-Chrome (Nichrome) wire, Copper Nickel (Constantan) wire, Stainless steel wire and related products in alloys tailored to meet specific customer requirements.
Round wire from SWG 0 to SWG 48(Dia 0.04mm-8.0mm).
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm
Our furnace resistance alloy heating ribbon is of high quality with following features:
1. A quite reasonable price
2. Stable performance: High working temperature(The highest temperature can be 1400), high strength under temperature, corrosion resistance, long life-span, allowable high surface load, small specific gravity, good formability and weldability.
Delivery status and supply state of furnace resistance alloy heating ribbon
Wire and plate with the looseness or oxidation colour soft modal supply.
Strip except special requirements outside, general with after annealing oxidation colour supply.
The flat silk thread and protecting gas to light after annealing soft modal supply.
2, product packaging of furnace resistance alloy heating ribbon
Wire or strips to pack cloth bandaged volumes supply.
Thread and flat silk, axis encapsulate supply.
3, export products and users have special requirement, negotiation.
Note
1, when the design should be based on the power wiring method, reasonable surface load, the correct choice of silk diameter,
2, before installation coping furnace thorough examination, cleared ferritic, "carbon, and the electric stove contact risks to avoid short circuit, in case caused furnace silk breakdown,
3, when installation should press design wiring method properly connected;
4, in use before should check the sensitivity of the temperature control system, in case of failure, cause temperature burnt.
