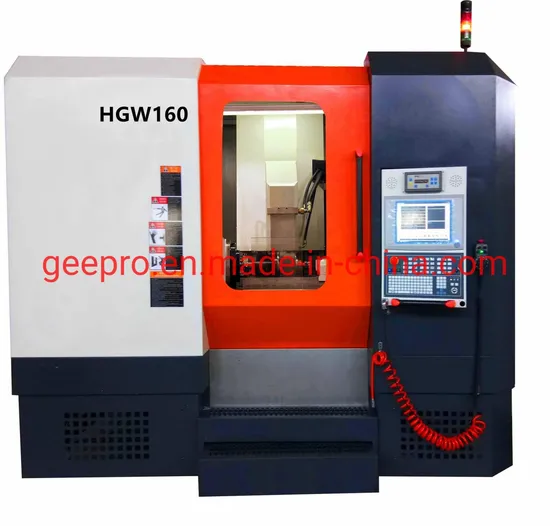

CNC Horizontal Gear Grinder Machine for Grinding 0.5-3module Dia 160mm
| US$291,000.00-350,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GEEPRO
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Delivery
2-3 Months
Sample Grinding
Free
Transport Package
Export Box
Specification
standard
Trademark
GEEPRO
Origin
China
HS Code
8460390000
Production Capacity
300-500PCS/Year
Product Description
CNC Gear Grinding Machine0.5-3module Dia 160mm
FREE SAMPLES GRINDING TESTING SERVICE.
Main parameters and configuration list:
Machining parameter | Workpiece rotation speed (Axis C) Synchronize with axis B | |||||
Outer diameter | Φ10~Φ550mm | distance between points | 280-480(580) mm | |||
Module | 1-8mm | X-radial feed of grinding wheel | 410(480)mm | |||
Tooth No. | 8~510 | Y-tangential movement of workpiece | 140mm | |||
Pressure angle | 14.5°~35° | Z-axial movement of | 270mm | |||
| Max. tooth width | 200(260)mm | V-movable feed of dressing roller | 165mm | |||
| Max. helix angle | ±45° | W-move of upper point | 300mm | |||
Workpiece weight | 100Kg | U-move of grinding oil nozzle | 60mm | |||
| Machine tool parameter | Others parameter | |||||
| Center distance between grinding wheel and workpiece | 160~640mm | taper of inner hole for workpiece spindle | No 4 | |||
| Grinding wheel size | Φ350×Φ160×104mm | Inner hole taper of upper | No 4/5 | |||
| Grindingwheel | Φ320mm | Total power of motor | 60kw | |||
| Min. root diameter of grinding wheel | Φ240mm | Diameter of Mushroom head | Φ50/63mm | |||
| Speed of griand wheel:(axis B)grindingrpm | 1100-3580mm | Overall dimensions (LxWxH) | 3050x2215x2677mm | |||
| Max. linear speed | 30-63m/s | Weight of main machine | 14T | |||
| Dressing | 40~200rpm | |||||
Standard configuration list:
| Item | Name | Description | Brand | QTY |
| 1 | Main machine | CHINA | 1 set | |
| 2 | Electric cabinet | With air conditioner | CHINA | 1 set |
| 3 | Water cooling maching | China | 1 set | |
| 4 | Cooling oil tank | China | 1 set | |
| 5 | Cooling oil machine | China | 1 set | |
| 6 | Oil mist dust remover | china | 1 set | |
| 7 | Hydreaulic station | CHINA | 1 set | |
| 8 | Dynamic balance of grinding wheel | HVS | 1 set | |
9 | grinding wheel dresser | With a diamond pen | CHINA | 1 set |
| Diamond roller | m=According to the customer grinding gear determine | CHINA | 2 pairs | |
10 | Flange of grinding wheel | CHINA | 3 set | |
| Grinding wheel | According to the customer's gear | China | 3 pieces | |
| 11 | points | Upper and lower points(alloy upper point) | CHINA | 1 for each |
| 12 | Controlling system | Germany | 1 set | |
| 13 | Tools | 1 set | ||
| 14 | Techniccal information | instruction manual | CHINA | 1 set |
| 15 | Grinding software | Power gear-C400 | CHINA | 1 set |
| 16 | certificate | Product qualification certificate | CHINA | 1 set |
List of imported parts
| Item | Axis used | Qty | Brand | Place of Origin | Remarks |
| Servomotor | X,Y,Z,V,B,C,A | 7 pcs | Siemens | Germany | 4 linear and 3 rotating axes |
Servodriver | X,Y,Z,V,B,C,A | 7 groups | Siemens | Germany | 3 linear and 4 rotating axes |
Grating ruler | X,Y,Z,V,B,C,A | 7 groups | Imports | Imports | 4 linear and 3 rotating axes |
| Lead screw | X,Y,Z,V | 4 groups | NSK | Japan | 4 linear axes |
| Guide rail | X,Y,Z,V,W | 5 groups | NSK | Japan | 5 linear axes |
| Bearing | Various | NSK | Japan | ||
| Controller | 1 set | MORA | Germany | 10 axis |
