Pir Motion Detect Sensor 220Vac Lighting Control Switch For The Air Conditioning
>> General

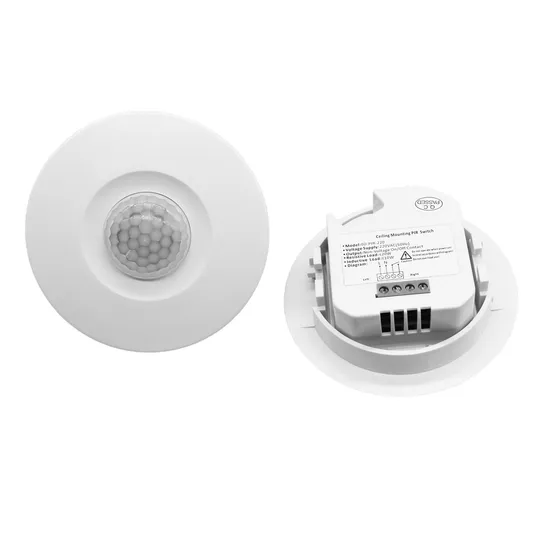

HTW-L727 is a ceiling-mounted passive infrared detector with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
>> Features
* Bipolarity design: Similar with ordinary wall switch (three connections), load capacity upto1000W.
* Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
* High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
* Delay time adjustable:5 - 350S
* Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
* Anti-radar function: Lightning protection components built inside.
>> Electrical Parameter

Induction way	Passive	Working voltage	AC110V or AC240V(50Hz/60Hz) Or 24Vac or Others Optiona
Induction principle	Human body Infrared	Self power consumption	<0.016W/h
Induction distance	7 meters	Loading capacity	Inductive 500W Resistance 1000W
Induction angle	140 degrees coning angles	Loading Equipment	Various
Lux range	5LUX-500LUX (adjustable)	Ambient temperature	-20ºC~50ºC

>> Wiring Diagram
>> Installation
