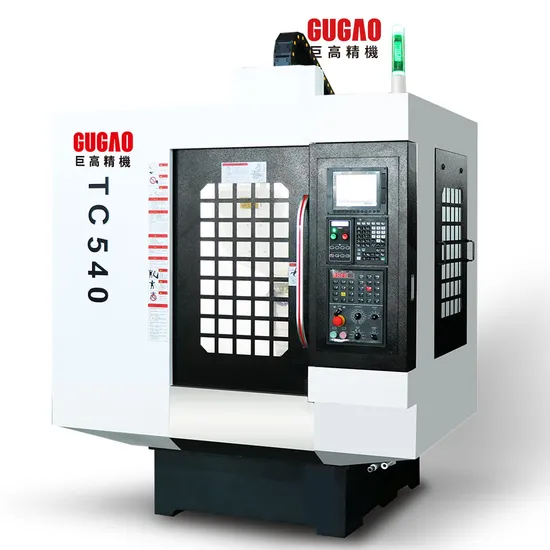

Tc540 Top Quality 3/4/5 Axis CNC Milling Machine CNC Lathe and CNC Cutting Machine Center
Basic Info.
Model NO.
TC540
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Worktable Size(L*W)
650*400 mm
Max Spindle Speed
20000 Rpm
Three Axis Fast Moving Speed
48/48/48
Magazine Capacity
21
Tool Exchange Time (T-T)
1.3 S
(X/Y/Z) Positioning Accuracy
0.008 mm
Transport Package
Wooden Base + Vacuum Sealed Paper + Pearl Cotton
Specification
1880*2600*2700 mm
Trademark
GUGAO
Origin
China
HS Code
84571010
Production Capacity
8000 Pieces/Year
Packaging & Delivery
Package Size
188.00cm * 260.00cm * 270.00cm
Package Gross Weight
3050.000kg
Product Description
Detailed PhotosProduct Description
The whole machine: The machine tool adopts a column fixed and a cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large-flow fully enclosed protection has a beautiful shape and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle adopts BT30 specifications, and has a central blowing function.
Tool magazine: The tool magazine adopts a clamp arm tool magazine with reliable quality and stable performance. The tool magazine adopts a clamp arm tool change, the tool magazine capacity is 21, and the tool change time is fast.
Drive: The three-axis motor and the high-precision ball screw adopt a direct drive method to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides, and the machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Parameters
| Name | Unit | Parameter | |
| Travel | Three axis travel | mm | 500/400/300 |
| Distance from spindle end face to worktable center | mm | 150~450 | |
| Worktable | Worktable Size(L×H) | mm | 650×400 |
| Maximum load-bearing capacity of worktable | kg | 300 | |
| T-shaped slot (width × spacing × quantity) | mm | 14×121×3 | |
| Spindle | Spindle diameter Spindle bore taper | ∅100/BBT30 | |
| Max. spindle speed | rpm | 20000 | |
| Motor power | kW | 3.7/5.5 | |
| Feed Speed | Three axis fast moving speed(X/Y/Z) | m/min | 48/48/48 |
| Three axis feed speed | m/min | 10/10/10 | |
| Magazine | Magazine capacity | 21 | |
| Max tool diameter/length/weight | ∅60mm/200mm/3kg | ||
| Maximum tool diameter (full tool/adjacent empty tool) | mm | 60/80 | |
| Tool exchange time (T-T) | s | 1.3 | |
| Accuracy | (X/Y/Z) Positioning accuracy | mm | 0.008 |
| (X/Y/Z) repositioning accuracy | mm | 0.005 | |
| Others | Linear rolling guide specifications(X/Y) | Ball 30/30/35 | |
| Ball screw specifications (X/Y/Z) | mm | 32/32/32 | |
| Servo motor specifications (X/Y/Z) | N.m | 9/9/22.5 | |
| Air source/pressure | 280L/min 6~8 Bar | ||
| Total electrical capacity | KVA | 15 | |
| (X×Y×Z)Machine size (X×Y×Z) | mm | 1880×2600×2700 | |
| Estimated weight | kg | 3050 | |
