Xcm G 19m Xg1930DC Xg1932DC Scissor Lift for Sale

Product Description

Product Description

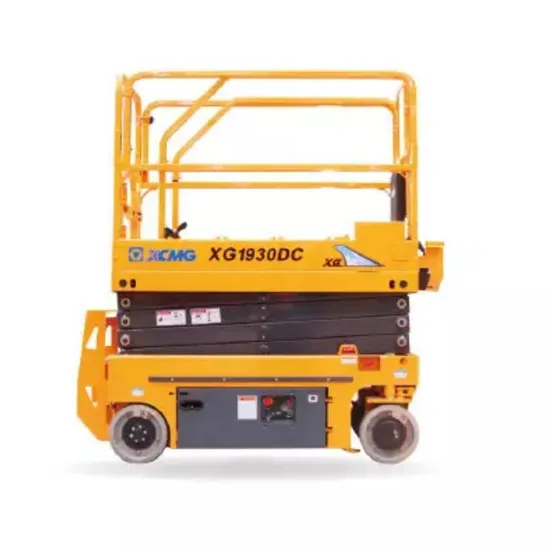

XG1930DC is a new elevating work platform developed and manufactured, with working height at 25ft 7in(7.8m), overall width at 2 ft 6in(0.76m), load capacity at 507lbs(230kg), platform extending length at 2ft 11in(0.9m), and gradeability at 25%.
Featuring compact structure, advanced performances, and complete safety protection, this machine is a special machine for building construction. Featuring zero-emission, high environmental-friendliness, stable lifting & lowering, easy operations, and convenient maintenances, it can be extensively applied in factories, warehouses, airports, and stations and is especially suitable for narrow working environments.

Detailed Photos
Product Parameters

Item			Unit	Parameter	Allowable tolerance
Dimension of machine	Length (without ladder)		mm	2840 (2630)	±1%
	Width		mm	1270
	Height (platform folded)		mm	2600 (2060)
Wheelbase			mm	2240	±1%
Wheel track			mm	1123	±1%
Min ground clearance (Pit protector ascending/descending)			mm	100/20	±3%
Dimension of working platform	Length		mm	2640	±1%
	Width		mm	1120
	Height		mm	1263
	Extension length of the auxiliary platform		mm	900
Centroid position of machine	Horizontal distance to front shaft		mm	1127	±1%
	Height of centroid		mm	720
Total mass of machine			kg	3350	±3%
Max. height of platform			m	13.7	±1%
Min. height of platform			m	1.478	±1%
Max working height			m	15.7	±1%
Min turning radius (inner wheel/outer wheel)			m	0/2.65	±1%
Rated load			kg	230	-
Payload of extended platform			kg	115	-
Lifting time			s	65-82	-
Lowering time			s	61-80	-
Drive speed(lowered)			km/h	3.2	-
Drive speed(elevated)			km/h	0.8	≤0.7m/s
Max. gradeability			%	25	-
Tilt warning angle (side/forward and backward)			°	1.5/3
Lifting / traveling motor		Model	-	-	-
		Rated power	kW	4.5	-
		Manufacturer	-	-	-
Battery		Model	-	T1275/6-EV-100	-
		Voltage	v	24	-
		Capacity	Ah	300	-
		Manufacturer	-	Leoch /Optional Trojan	-
Tire models			-	Traceless and solid /381×127	-
