Construction Machinery 2.5m3 Self Loading Concrete Mixer Hy250
| US$10,000.00-14,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY250
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
35m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Total Weight
6200kg
Engine Power
76kw
Loader Bucket Capacity
0.6m3
Driver Type
4*4
Engine
Yunnei/Weichai/Cummins
Transport Package
Nude Package
Specification
7500*2700*3380mm
Trademark
Chinese Brand
Origin
China
Production Capacity
100units/Month
Product Description

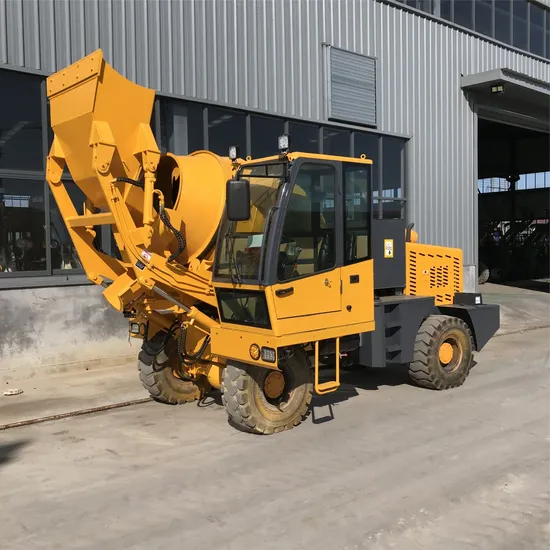

Construction Machinery 2.5m3 Self Loading Concrete Mixer HY250Features:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Parameters:
| Name | Item | Specification | ||
| | Net | 6200 KG | ||
| Transmission | 4 WD | |||
| | Brake | Air Brake | ||
| Chassis | Off-road | |||
| Loader bucket | capacity | 0.4m3 | ||
| Control | Hydraulic | |||
| Tilt angle | 20% | | ||
| Speed | High | 0-30KM/H | ||
| Low | 0-9KM/H | |||
| Mini turning radius | 4.5M/R | |||
| Engine | Type | Yunnei 4102 | | |
| Rated Power/RPM | 76KW/2200RPM | |||
| Max.Torque/RPM | 360N.M/1400RPM | |||
| Cylinder | 4 | |||
| Starter | Electric | |||
| Cooling type | water cooling | |||
| Maxing Drum | Output capacity | 2.0M3 | ||
| Bank Angle | 16 ° | |||
| Chute | Swing Angle | ≥50° | ||
| Angle control | Hydraulic | |||
| Loader control | Hydraulic 4 way stick | |||
| Tyre model | 16/70-20 construction tyre | |||
| Electronic parts | Waterproof circuit | |||
| Hydraulic oil | France Total brand | |||
Pictures:
Our Factory:
