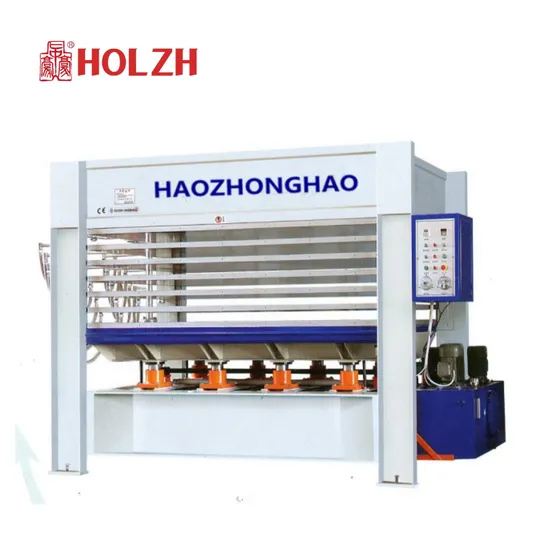

Woodworking Hydraulic Plywood MDF Veneer Hot Press Machine
| US$8,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BY214
Processing Technics
Hot Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
Medium Pressure
Pressing Layer
Multi Layer
Work Mode
Continuous
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
ISO
After-sales Service
1 Year
Pressure
200t
Dimension of Hot Platens
2500*1300
Layer
3
Number of Cylinders
8
Power
7kw
Heating Power
55kw
Transport Package
Plastic Film
Specification
3750*1450*2450MM
Trademark
HOLZH
Origin
Qingdao
HS Code
84659900
Production Capacity
20sets/Month
Product Description
| Model | BY214*8/20(5) |
| Nominal pressure | 200T |
| Dimension of hot platens | 2500*1300*42mm |
| Service opening | 80mm |
| Layer | 5 |
| Number of cylinders | 6 |
| Diameter of cylinders | 130mm |
| Power | 7kw |
| Heating Power(thermal oil furnace) | 55.5kw |
| Overall size | 4100*1650*2500mm |
| Net weight | 11500kg |
Designed for hot pressing, stickers veneer, veneer furniture panels, door panels, HDF, chipboard etc.
They are used in industries working with board materials, furniture production of any capacity.
• reamed steel plate with high quality
• Equipped with the high and low pressure gauge controller
• Temperature control is carried out pressing thermostat
• The press is equipped with an automatic timer on the outdoor table
• Hydroelectric include and easy to install and operate
• Boiler heating plates based on heating conduction oil
| The surface of the reamed steel plates which minimizes the problem of pollution and excess adhesive plates protecting the plate from corrosion. | Six cylinders provide a high quality gluing, which is especially important for the laminated surface. |
| Oil boiler, supplied the press provides rapid heating of the coolant, which ensures equal heating plates. | Powerful high-performance hydraulic unit consistently delivers even pressure in any circuit hydraulic system |
| Control panel |
