Advanced Creasing Tool for Precision Crafting Zs-1400 Motor Power
| US$35,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZS-1400
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material
Motor Power
9kw
Overall Dimension
7550×2800×2300mm
Box Mill Layout
1000*1400mm
Minimum Box Size
540*660mm
Maximum Box Size
950*1380mm
Die-Cut Paper Card Thickness
0.2-5.0mm
Paper Feeder Stack Height Limit
1200mm
Paper Height Limit at Receiving Table
900mm
Main Motor Power
5.5kw
Total Power
9kw
Work Efficiency
700-1000zhang
Transport Package
Wooden Box
Specification
2500kg
Origin
China
Production Capacity
50 Sets/Month
Product Description

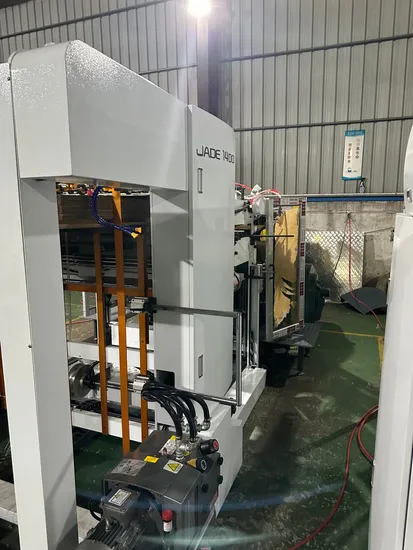

This machine is an automatic creasing machine composed of ML - type machinery combined with ZS - type mechanical arms. After the addition of mechanical arms, it replaces manual paper - feeding, featuring simple operation, labor - saving, and high safety.Characteristics High strength due to one piece casting by using top quality materials for machine body. Smooth running, big pressure and low noise are obviously remarked as 4 - step helical gear mechanism is adopted. Single plate electromagnetic clutch is sensitive subreliable. Operational altitude is reasonably arranged, moving - bed opens to its optimum. Electrical system is designed in conformity with IEC standard. Single, continuous operation and opening dwell. Dwell range is adjustable. Safety system is reality reliable. Concentrator lubricating system.
