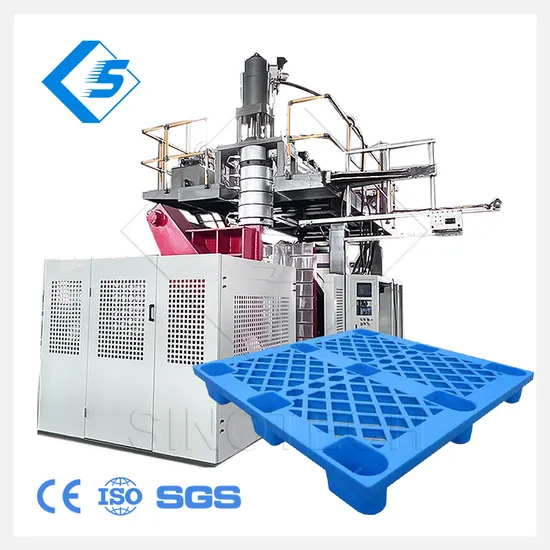

Modular Floating Plastic Dock Extrusion Blow Moulding Machine
STS-135L series,This is our hot sale series machine. This machine is suitable for the plastic pallets.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
STB-135 Accumulator Extrusion Blow Molding Machine
Machine Features
1. Special design for Nine corner plastic pallets. 2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose 10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.
Product Parameters

Technical Specification		STB-135 Accumulator Extrusion Blow Molding Machine
Specifications		STB-135
Machine Weight	T	35
Machine Dimension(L*W*H)	M	9.0*6.5*7.8
Average power Consumption	KW	100
Die Head
Number of Heating Zone	Zone	8
Power of Die Heating	KW	56
Max. Die-pin Diameter	mm	950
Extruder Unit
Screw Diameter	mm	135
Screw L/D ratio	L/D	30:1
No. of Heating Zone	Zone	21KW*6
Heating Power	KW	88
Screw driving power	KW	160
Clamping Unit
Mould Size(W*H)	mm	1300*1300
Mould thickness	mm	1200
Mould Platen Size(W*H)	mm	1500*1500
Opening and Closing stroke	mm	800-2200
Clamping Force	KN	2000
Power
Total Power	KW	320
Blowing pressure	Mpa	0.6
Average power consumption	KW	100

Our Advantages
Company Profile
Certifications
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
