Mobile Drum Asphalt Plant with Central Computer Control, 8t/H-40t/H

Product Description

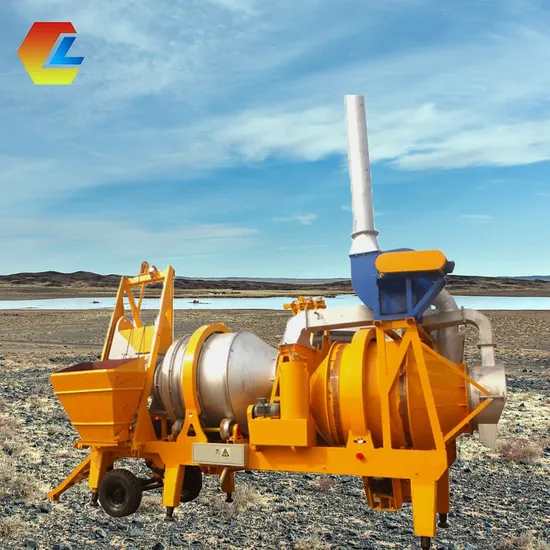

SLHB mobile asplalt plant
Mobile Drum Asphalt Plant with Central Computer Control, 8t/H-40t/H
Features of SLHB Series Mobile Asphalt Mixing Plant:
1. Revolutionary intermittent drying drum and mixing drum design, significantly reducing investment costs for customers.
2. Efficient positive drying and reverse discharging system with central induced air, ensuring a simple and user-friendly overall structure.
3. Cutting-edge PLC programmable centralized control with touch screen operation, allowing for seamless automatic to manual switching.
4. Robust mobile chassis structure for swift and convenient transportation and installation.
5. Versatile coal-fuel combustion furnace options to cater to individual user needs.

Model		SLHB-8	SLHB-10	SLHB-15	SLHB-20	SLHB-30
Capacity		8t/h	10t/h	15t/h	20t/h	30t/h
Total Power	Diesel	23KW	27KW	32KW	45KW	63KW
	Coal	39KW	43KW	51KW	70KW	84KW
Batcher		3×3m³	3×3m³	3×3m³	3×3m³	3×3m³
Storage hopper		5t	5t	5t	5t	9t
Product temp		120-180
Fuel consumption		Oil:5-8kg/t Coal:13-15kg/t
Control method		PLC

LQY mobile asplalt plant
1. State-of-the-art automatic measuring and batching station 2. Advanced coal grinding and powder feeding device
3. Dual-purpose kerosene cyclone combustion furnace 4. High-efficiency mineral material elevator
5. Superior quality drying drum 6. Precision mixer
7. Durable upper shell 8. Reliable asphalt conveying and measuring system
9. Efficient mineral powder conveying and metering 10. Smooth screw conveying
11. Spacious finished product silo 12. Comprehensive dust removal system
13. Sturdy trailer traveling system 14. Hydraulic support feet for stability
15. Sophisticated PLC programmable electrical control cabinet 16. Modern control room

Model		LQY-10	LQY-15	LQY-20	LQY-30	LQY-40
Capacity		10t/h	15t/h	20t/h	30t/h	40t/h
Total Power	Diesel	42KW	54KW	64KW	105KW	125KW
	Coal	58KW	75KW	87KW	128KW	169KW
Batcher		3×3m³	3×3m³	3×3m³	3×3m³	3×3m³
Storage hopper		3t	5t	5t	9t	9t
feed hopper capacity (kg)		500	750	1000	1500	1800
barrel rotation speed (rotation/min)		18	18	16	16	16
sphere of application		asphalt powder, asphalt aggregate, asphalt concrete
Product temp		120-180
Fuel consumption		Oil:5-7.5kg/t Coal:13-15kg/t
Production cycle		3 minutes, i.e. 20 batches per hour

Features of LQY Series Mobile Asphalt Mixing Plant:
1. Innovative intermittent drying drum and double horizontal axis mixing design for thorough mixing and superior finished material quality.
2. Efficient positive drying and reverse discharge with a straightforward user-friendly structure.
3. Advanced PLC programmable centralized control with touchscreen operation for seamless automatic to manual switching.
4. Sturdy mobile chassis structure for quick and easy transportation and installation.
5. Customizable coal-fuel combustion furnace to meet specific user needs. Detailed Photos
