High Precision CNC H Beam Steel Drilling Machine for Efficient Processing

Product Description

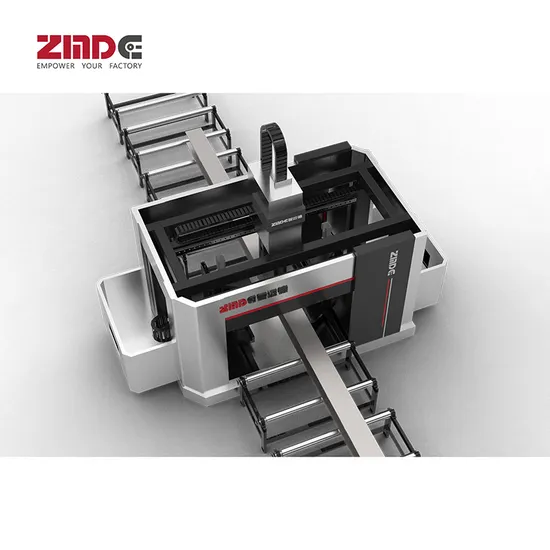

ZMDE High Precision H Beam Steel Processing Machine CNC 3D Drilling Machine

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

Our cutting-edge device is engineered to drill precise holes on three sides of H-beam steel simultaneously. Featuring 7 CNC axes and a CAD/CAM directly generated processing program, this machine ensures unparalleled accuracy. With a maximum H-beam section size (belly height × wing width) of 1000×500mm and a maximum drilling diameter of 33.5mm, it meets the most demanding requirements. The control system includes a computer numerical control system, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece size to automatically generate, store, recall, display, and process the machining program by part number whenever needed.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands as a beacon of innovation in the field of assembly building intelligent equipment. Recognized as a high-tech enterprise and a national specialization, specialty, and new 'small giants' enterprise, we excel in R&D, manufacturing, sales, and service. Our core industries encompass steel structure assembly building intelligent industrial mother machines and industry IoT.intelligent control systems.
Our headquarters are based in Lingang New Area, Pudong New District, Shanghai. Spanning 32,000 square meters, this facility houses the Research Institute of Artificial Intelligence for Assembled Buildings, focusing on high-end R&D in AI, Intelligent Buildings, and Industrial IoT. It serves as the hub for our management and technological advancements.
Our Shandong base, located in Weicheng District, Weifang City, specializes in the research, development, and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients. 2. Q: Could you specify the payment terms you accept? A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer). 3. Q: What is the typical delivery time for your orders? A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently. 4. Q: What is the duration of your warranty period? A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits. 5. Q: Do you offer ODM/OEM services? A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
