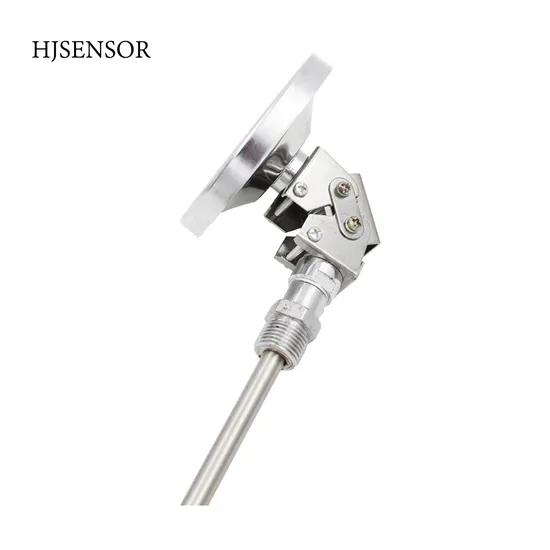

Dual display Stainless Steel Bimetallic Thermometer Temperature gauge
Basic Info.
Model NO.
HTB
Display
Pointer
Material
Bimetallic
Hygrometer Type
bimetallic
Transport Package
Carton
Trademark
Hangjia
Origin
China
HS Code
9026209090
Production Capacity
50000pieces/Year
Product Description
Product Overview: WSS series industrial Bimetallic thermometer is a kind of measuring instrument suitable for field measurement temperature. It can be directly measure the temperature of precious gas, liquid and steam,widely used in machinery, shipbuilding, petrochemical, metallurgy, electric power, light industry and scientific research departments. Compared with the industrial glass mercury thermometer,WSS series industrial Bimetallic thermometer has the advantages of no mercury damage, easy reading, robustness and vibration resistance. It can be used to replace the fragile industrial glass mercury thermometer.Features:
No harmful mercury, easy to read
Protection tube material is stainless steel, pressure and corrosion resistance
Axial and radial-type, 135-type, universal type and other varieties, adapted to the needs of a variety of on-site installation Parameters:
| Dial Diameters | 2.5"(63mm), 3"(75mm), 4"(100mm) |
| Pressure range | -50ºC~0~600ºC |
| Connector/Socket | M20*1.5, G1/2, other customized |
| Tube diameters | 6mm, 8mm,10mm, other customized |
| Tube length | Customized, at least 50mm |
| Dial Plate | Single,dual (°C,°F) |
| Pointer | Aluminum |
| Case | ss304 |
| Ring | ss304/ crimpled ring |
| Installation direct | Axial type, Radial type, multi-direction type |
| Liquid filled | Glycerin (selected) |
| Accuracy | 1.0% |
| Trademark: | Hangjia |
| Transport package: | Paper carton |
| HS Code: | 9026209090 |
Ordering Guide
| Code | Type | |||||||||
| HTB | Bimetal thermometer | |||||||||
| Range | Measure range | |||||||||
| (0-X)ºC | X input directly | |||||||||
| Code | Dial Diameter | |||||||||
| 60 | Φ60 | |||||||||
| 100 | Φ100 | |||||||||
| 150 | Φ150 | |||||||||
| Code | Structure | |||||||||
| 1 | Axial Direction | |||||||||
| 2 | Radial Direction | |||||||||
| 3 | Multi-direction | |||||||||
| Code | Insert length | |||||||||
| l | at least 50mm, input directly | |||||||||
| Code | Tube diameter | |||||||||
| 1 | 8mm | |||||||||
| 2 | 10mm | |||||||||
| 3 | 12mm | |||||||||
| Code | Tube length | |||||||||
| L | mm, input directly | |||||||||
| Code | Installation | |||||||||
| 1 | Without Fixing | |||||||||
| 2 | Fixed thread | |||||||||
| 3 | Tri-clamp | |||||||||
| Code | Connection | |||||||||
| P1 | M20×1.5 | |||||||||
| P4 | G1/2 | |||||||||
| K1 | 1.5"clamp | |||||||||
| Code | Others | |||||||||
| F | Anti-corrosion | |||||||||
| N | Shock-proof | |||||||||
| Sample: HTB | 0-200°C | 100 | 3 | l=80 | 1 | L=95 | 2 | P1 | N | |
Related Products: Certification: FAQ: 1. Q: Are you manufacturer or trading company? A: We are manufacturer which focuses on sensor for 10 years. 2. Q: What's your quality control system? A: MC, ISO9001, CE Certificated. 3. Q: What is the warranty of your products? A: Our warranty time is 18 months after shipment. 4. Q: What is lead time of your product? A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items. 5. Q: Do you provide customized products? A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed. 6. Q: What is your MOQ? A: We have no MOQ limit, small quantity order is acceptable. 7. Q: What's the transport? A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea. 8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
