UPVC CPVC Pipe Grinder Machine/Pipe Shredder Machine/Pipe Grinding Machine

Product Description

SWP PVC pipe crusher/pipe crushing machine
SWP series strong crusher, SWP series heavy crusher is mainly used for crushing all kinds of plastic profile and pipe materials. It does not need to cut and segment the long plastic pipe, and can continuously feed material at one time. Such as plastic doors, plastic tubes, plastic plates, window frames, trunking, sheets and so on. The model can realize automatic feeding, and the entire pipe is put into the machine to crush on its own; a fan is used to transport the broken material device, and the broken qualified particles are pulled out from the machine by the suction fan to facilitate bagging and warehousing; The device, and the large SWP model is equipped with an independent control box. The operation and maintenance are extremely convenient and it is the ideal model for crushing various pipes and profiles. Crusher wearing parts for the blade, long-term use will wear out. We usually use yttrium-chromium-silicon (9GrSi) high-quality alloy steel blades, which have stronger wear resistance and impact resistance than ordinary materials, and can be repeatedly used after being used for a long time after blunt knife-edge, which greatly reduces the cost. According to the different requirements of customers, it can also be equipped with imported tools to better improve the performance of the machine.
This pipe/profile crusher machine is used in crushing waste plastics and defective plastic products to plastic granules.it mainly used for crushing the plastic PVC,PP,PE,HDPE, LDPE pipes, window and door profile, various plastic sheet and so on. We have different kinds of crusher, you can choose the suitable according to your material.
Feature:
1-Steel body and clamping blade prevent the machine from cracking
2- Stepped blades increase shearing strength and crushing efficiency
3-Movable screen is easily to assembly, disassemble and wash
4-Sound separation layer in the feeding door lowers operations noise levels
Main Technical Parameters:

Model	SWP300	SWP400	SWP500	SWP600
Rotary Knife Diameter(mm)	400	400	400	400
Rotary Knife Quantity (unit)	3	5	5	10units/2groups
Rotary Knife rpm(r/min)	600	500	500	480
Static Knife Quantity(unit)	2	2	2	2x2
Sieve Aperture(mm)	φ10	φ12	φ12	φ12orφ14
Crushing Capacity(kg/h)	150-200	300-400	400-500	500-700
Power(kw)	13.2	18	18-22	33
Feed Door Caliber(mm	300x200	350x300	500x300	650x300
Weight(kg)	950	1300	1500	1800

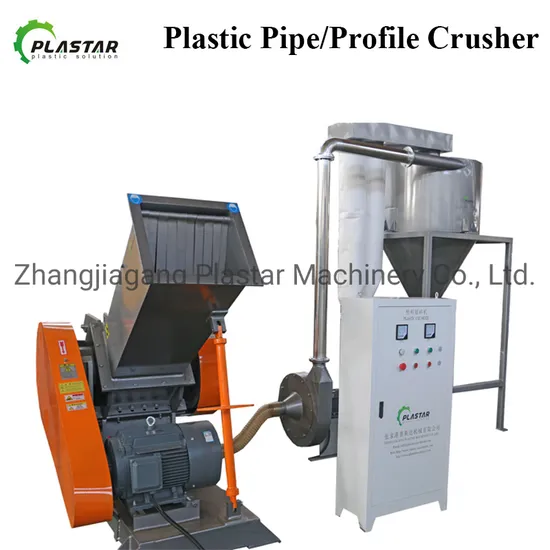

Machine pictures for reference:
About our company:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
