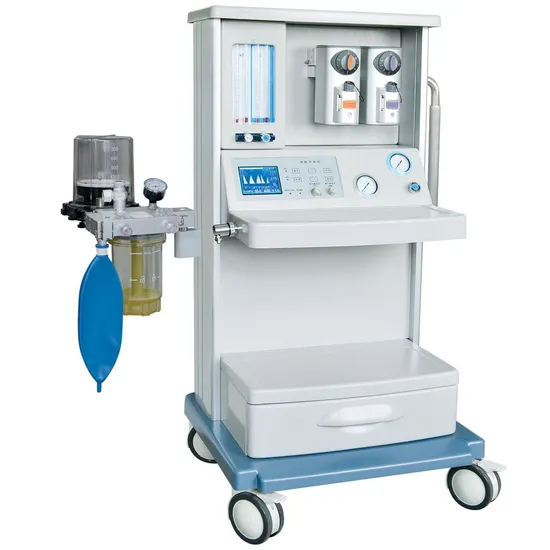

Hospital Clinic Surgical Operation Room Medical Equipment Anestesia Equipment Anesthesia Machine
Basic Info.
Model NO.
jinling-01B
Certification
ISO13485, RoHS
Group
Adult and Children
LCD Display
With LCD Display
Display
5.4 Inch TFT Display
Flowmeter Range
O2: 0.1~10L/Min; N2o: 0.1~10L/Min
Ventilation Mode
Ippv,Sippv, Simv, Manual
Back~up Power Supply
at Least 4 Hours
Tidal Volume
Adjustable Range: 50~1500ml; Display Range: 0~2000
Respiratory Rate
1~99bpm
Simv Frequency
1~20bpm
Oxygen Flush
25-75L/Min
Inspiratory/Expiratory (I: E) Ratio
4:1~1:10
Inspiratory Pressure Trigger
-10~10CMH2o
Sigh
1 Sigh Breath in Every 80-160 Breaths
Vaporizer Concentration Ranges
0~5%
Vaporizer
Enflurane, Isoflurane,Sevoflurane or Halothane
Gas Supply Pressure
O2: 0.32MPa~0.6MPa; N2o: 0.32MPa~0.6MPa
Transport Package
Five Layers of Double Corrugated Export Carton
Specification
1 CBM; 91 KGS
Trademark
JINLING
Origin
China
HS Code
9018907010
Production Capacity
80 Unit/Month
Product Description
5.4 inch TFT display Hospital Medical equipment best selling Anesthesia machine with two vaporizer1-Equipped with electronic pressure differential flow sensor, imported respiratory control valve 2-Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality 3-High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21% 4-Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor 5-Power Failure Support Functions: Automatically converts to backup power mode during AC power outages 6-Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function 7-Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C Optional: Multi-parameter Patient Monitor Specifications
| Model | JINLING -01B advanced model |
| Display | 5.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | IPPV, SIPPV, IMV, SIMV, MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-2000ml | |
| Respiratory Rate | 1-99bpm |
| Inspiratory/Expiratory (I:E) Ratio | 4:1-1:10 (capable of inverse ratio ventilation) |
| Oxygen Supply Flow Rate | 25~75L/min |
| Inspiratory Pressure Trigger Range | -10-10cmH2O (electronically controlled) |
| SIGH | 1 sigh breath in every 80-120 breaths |
| Vaporizer Concentration Ranges | 0-5% |
| Vaporizer Slots | Double PA-I type slot |
