Mobile Mini Concrete Batching Plant Aggregate Weighing Conveyor with Accessory

Product Description

Product Overview Construction machinery concrete mixing and batching plant

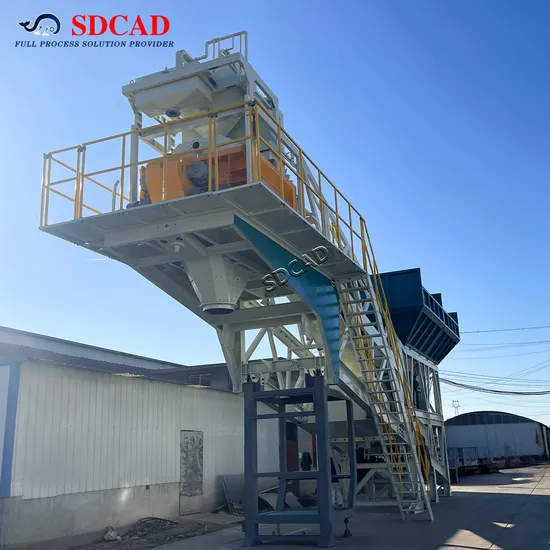

HZS Bucket type concrete batching plant consists of aggregate/fly ash/cement/additive/water batching system, mixing system and automatic control system etc, they are widely used in small and medium construction projects, road, bridge project, and concrete precast factory.
Feature at a glance

Model: HZSY25~HZSY100
Capacity: 25~ 100 m³/h
Provide technical support 24 hours.
Engineers to guide the installation and operation
Customized Solution is the Core Concepts of SDCADI
Advantage 1. Integrated trailer design, can be driven on the road, Easy to transfer.
2. Self-research concrete mixer, reliable operation, high quality wear-resistant parts, longer life
3. Compact structure, small footprint, scientific arrangement of components, easy maintenance.
4. High-quality accessories, more stable operation, low failure rate.
5. Computer control, easy to operate, can realize manual, semi-automatic and full-automatic multiple control modes.
6. All materials are measured separately, with high output and measurement accuracy.
7. Mixer options include planetary mixer and double horizontal shaft mixer
8. All the equipment load into one 40HQ
9. Fully automatic operation, one person can operate the entire device, saving labor.
10. Customization is acceptable,Not limited to solutions, output, electrical brands, etc

Model		HZSY25	HZSY35	HZSY50	HZSY75	HZSY100
Theoretical Production (m³/h)		25	35	50	75	100
Mixer		JS500	JS750	JS1000	JS1500	JS2000
Mixer Power (kw)		18.5kw	30kw	2×18.5kw	2×30kw	2×37kw
Aggregate Maximum Particle(mm)		60/40	60/40	80/60	80/60	80/60
Feeding capacity (L)		750	1150	1500	2250	3000
Discharge capacity(L)		500	750	1000	1500	2000
Aggregate Bin Capacity (ms)		2×6	2×6	4×5	4×5	4×5
Aggregate conveyor belt		800	1200	1600	2400	3200
Belt conveying capacity (t/h)		300	300	300	600	600
Screw conveyor Capacity (t/h)		40	40	40	40-70	40-70
Breaking bucket capacity( ms)		4.0	4.0	4.0	4.0	4.2
Installed capacity (kw)		67	79	92	120	170
Weighing range	Aggregale	(200~800) ±2%	(250~1200) ±2%	(300~1600) ±2%	(400~2000) ±2%	(500~240) ±2%
	Cement	(70~350) ±1%	(100~500) ±1%	(100~650) ±1%	(200~1000) ±1%	(250~120) ±1%
	Water	(50~200) ±1%	(50~200) ±1%	(50~250) ±1%	(100~400) ±1%	(100~550 ±1%
	Additive	(10~30) ±1%	(10~30) ±1%	(10~30) ±1%	(10~30) ±1%	(10~50) ±1%

SALES AND SERVICE NETWORK
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets. How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
1Set
