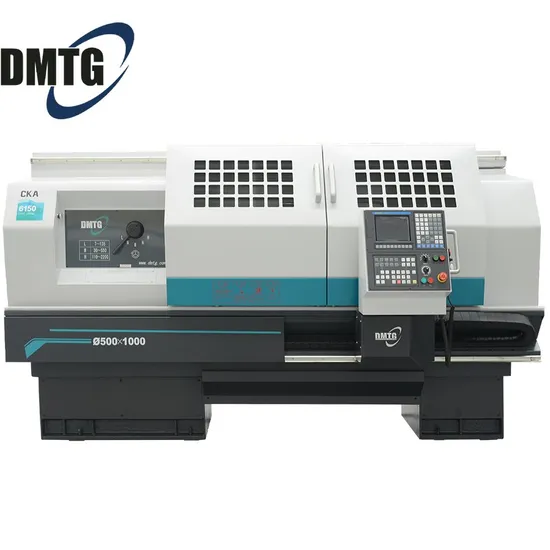

Dmtg Cke6150 CNC Torno Automatic De Madera Con Lijado De Pulido Swiss Type
Basic Info.
Model NO.
CKE6150
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.05~0.06(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month
Product Description
DMTG CKE6150 CNC Torno Automatic De Madera Con Lijado De Pulido Swiss Type CNC Lathe CNC Automatic Lathe Machine Price| MAIN PARAMETER | Max swing diameter over bed | mm | φ500 |
| Max swing diameter over cross slide | mm | φ280 | |
| Max workpiece length | mm | 750/1000/1500/2000 | |
| Max cutting length | mm | 680/930/1430/1930 | |
| Max turning diameter | mm | φ500 | |
| Spindle center height | mm | 250 | |
| Bed guideway width | mm | 400 | |
| SPINDLE | Spindle motor power | kW | 7.5/11 |
| Spindle bore | mm | φ82 | |
| Chuck size | mm | φ250 | |
| Taper of spindle bore | Front end φ90 1:20 | ||
| Type of spindle nose | D8 | ||
| Spindle speed ranges | r/min | 7-2200 | |
| TAILSTOCK | Diameter of tailstock quill | mm | φ75 |
| Travel of tailstock quill | mm | 150 | |
| Taper of tailstock quill | No.5 MT | ||
| TOOLPOST | Tool shank size (Vertical 4-position) | mm | 25X25 |
| ACCRACY | X/Z axis positioning accuracy | mm | 0.018/0.021 (750) 0.024 (1000),0.026 (1500/2000) |
| X/Z axis repeatability accuracy | mm | 0.006/0.008 (750) 0.011 (1000),0.014 (1500/2000) |
