Metal Roofing Tile Corrugated Profile Roll Forming Machine Building Material Machinery

Metal Roofing Tile Corrugated Profile Roll Forming Machine Building Material Machinery

US$12,000.00
1 Piece
US$11,000.00
2 Pieces
US$10,000.00
3+ Pieces

Basic Info.

Model NO.
Corrugated Panel Forming Machine
Tile Type
Glazed Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Electric
Type
Tile Forming Machine
Production Capactity
20m/Min
Applicable Industries
Construction Works
Showroom Location
None
Warranty of Core Components
1 Year
Core Components
Motor, Pump, PLC, Gear
Voltage
380V, or as The Customer Requirement
Transport Package
Naked
Trademark
HUA YU XIN NUO, XINNUO
Origin
Botou Hebei, China
Production Capacity
15 Set/Sets Per Month

Product Description

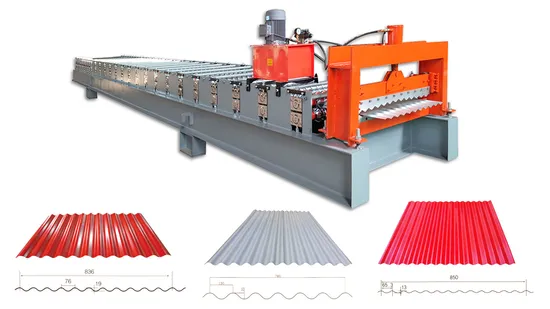

Corrugated sheet Roll Forming Machine
Detailed Photos
Product Parameters
Suitable to process Color steel plate
Width of the plate 914mm/1000mm/1200mm/1220mm/1250mm
Thickness of the plate 0.3-0.6mm
De-coiler Manual one, can load 5 tons raw material
Rollers for forming 21+13 rows
Diameter of the roller 80mm
Rolling material Carbon Steel 45#
Main motor power 5.5kw
Material of the cutting blade Cr12 mov
Hydraulic cutting power 4kw
Processing precision Within 1.00mm
Control system Delta PLC control
Side panel of machine 16mm
Main structure of the machine 350 H steel
Weight About 5T
Dimensions 8.5*1.6*1.6m
Voltage 380V 50Hz 3phases(changeable as needs)
Certificate CE/ISO
Custom According to customer's requirements

Packaging & Shipping
Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.
Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail: 20 days

Company Profile
FAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. metal steel profile roof tile cold roll forming machine
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you. metal steel profile roof tile cold roll forming machine
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.metal steel profile roof tile cold roll forming machine
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skyp. metal steel profile roof tile cold roll forming machine
