Ce Approved Rotogravure Printing Machine with High Quality

Product Description

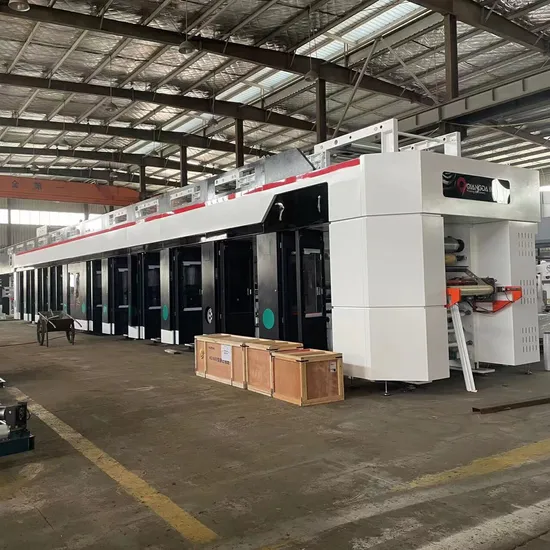

CE Approved Rotogravure Printing Machine With High Quality
Product Description
Use:
This machine is suitable for continuous, multi-color printing or rolling material in good printing performance such as tobacco packing, yew paper, liquid paper box, BOPP. PET,PVC, PE,etc and broadly applied for all types of super-quality printed matters.
Feature: - This machine is Electronic Line Shaft Tension Control System from Siemens Germany.
- This machine can use both water-based ink and solvent-based ink.
- Fully enclosed structure, achieve factory workshop odorless pollution.
- Max. mechanical speed 320 m/min, Max. printing speed 300 m/min.
- Separate both side rotation type double station turret, Max. unwinder & rewinder diameter: Φ800mm
- Unwind & rewind unit Shaft-less pneumatic cone web loading and unloading.
- Automatic splicing without machine stop.(Auto Changer)
- Vertical& HorizontalAuto Registration Control System with video inspection, precision:±0.06mm
- Pre-registration system to ensure easy registration, decrease material waste when machine beginning.
- Ink transfer roller technology to make ink transfering more uniform to get better printing quality, machine can high speed running without ink flying out.
- Printing unit controlled by Siemens Servo motor, 1 color 1 Siemens servo motor.
- In-feed & out-feed unit controlled by Siemens Servo motor.
- Shaftlesspneumatic conic topping.
- Box-typeheavy duty doctor blade structure.
- Dryer inside stainless steel structure, prevent rusty.
- Electrostatic Elimination for In-feed unit and Rewinder unit, Electrostatic brush for printing unit.
Our Advantages
1. ISO 9001:2000, CE, Production Assessment, Gold Supplier certificated
2. With patents for different machines, for eg, Model QHSY-A Rotogravure printing speed is 300 m/min
3. All machines will be examined and tested before delivery by 3 professional engineers (with more than 30 years machine experience)
4. Perfect after-sale system, setted up more than 8 Agents all over the world.
5. Yearly Production Capacity -- 300-400 sets
6. Prompt Reply Within 12 Hours
7. Every parts of machines will be made by CNC(Computer numerical control) machining center, no longer need manual. Much improve the accuracy, efficiency, etc.
Main technical parameters:

Printing sequence	From Left to Right
Printing color number	9 colors
Max. printing cylinder loading width	900mm
Guide roller width	900mm
Max. effective printing width	800mm
Diameter of printing cylinder	Φ120mm-Φ300mm
Max mechanical speed	320m/min
Max printing speed	300m/min
Accuracy of registration	Vertical≤±0.06mm( auto chromatography;accord to material)
	Lateral≤±0.10mm( auto chromatography;accord to material)
Max. unwinder diameter	Φ800 mm
Max. rewinder diameter	Φ800 mm
Paper core diameter	Φ76mm x Φ152mm (3 inch & 6 inch)
Tension control range/accuracy	3~30kgf/±0.5kgf
Max. Impression roller pressure	600kgf
Impreession roller hardness	Shore hardness(A) 70°~75°
Doctor blade movement	±5mm
Length of oven dryer	1.9 meter (Last printing unit over dryer 2.9 meter)
Max. temperature of drying	80ºC(Room temperature 20ºC)
Accuracy of temperature control	±2ºC
Max. oven wind speed	30m/s
Max air flow	5800m3/h
Hot air return utilization rate	0~50%
Fan power	4 KW (last printing unit fan power 5.5 KW)
Unwind Servo motor	4 KW (Fukuta Servo Motor)
Rewind Servo motor	4 KW ( Fukuta Servo Motor)
In-feed Servo motor	3.5 KW (Siemens Servo Motor)
Out-feed Servo motor	3.5 KW (Siemens Servo Motor)
Servo motor power	3.5 KW x 8 (Siemens Servo Motor)
Heating power	288 KW (36 KW x 8)
Total power consumption	About 390 KW
Current power consumption By natural gas or steam heating	About 100 KW
Voltage	3 phase X 380V X 50HZ±10%, with grounding and neutral
Air consumption	0.8 m3/h
Air consumption	0.6Mpa≤P≤1.0Mpa
Chilled water flow rate	8 m3/h
Total weight	About 37 ton
Overall dimensions	About 22000(L)×4200(W)×4000(H) mm

Unwind
Dance roller
Doctor blade Print unit
Stroboscope
Company information
Company Brief Introduction
Wenzhou Qiangda Printing Machinery Co.,Ltd was founded in early stage of1980s,having Ruian Qiangda Printing Machinery Co., Ltd .as its predecessor.Presently,it covers an area of 46000m²,has 300 employees,and up to 70 sets of production facilities such as imported digital control machining centers.Specialized in fabricating soft package facilities such as printing presses,laminating machines,splitting machines ,yew paper printers,yew paper bronzing machines.it is among the most powerful and famous enterprise in the same circle in China,and has its unique technique and experience :based on the market demands ,this company is the first to successfully develop a new performance and operation target of which have overtaken the level of domestic similar products.:its products is sold all though China ,and imported to tens of countries and regions such as South-East Asia,Middle -East,Russia ,South American ,and Africa,receiving good graces from users everywhere.
Enterprise Honors
Packing & Delivery
FAQ
1.Are you a manufacturer?
Yes, we have been in making printing machine over 37 years.

2.What about the payment term ?
Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.if nessary,can do L/C.

3.machine adjustment and installation
We can send technicians go to customers' country for machine installation and adjustment.
4. Quantity and quality guarantee
Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.
Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
5. Validity: 60 days since the quote date
Thanks for your attention! Sincerely hope to work with you in near future!
