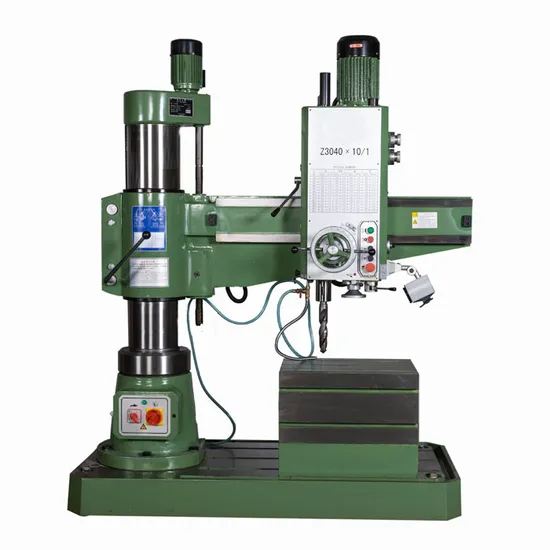

Big Size 40mm Capacity Hydraulic Radial Drilling Machine (Z3040X10/1)
| US$3,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040x10/1
Structure
Radial Drilling Machine
Layout
Radial
Controlling Mode
Artificial
Number of Shaft
No CNC
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Z3040X10/1
Big Size 40mm Capacity Hydraulic Radial Drilling M
Max.Drilling Capacity
40mm
Distance Spindle Axis to Column Generati
300-1000mm
Diameter of Column
240mm
Spindle Taper
Mt4
Spindle Travel
280mm
Spindle Speeds Range
32-2500r/Min
Dimension of Worktable
600X450X450
Packing Dimension
187X97X220cm
Fast Moving Motor of The Worktable
0.75kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459290000
Production Capacity
200sets/Month
Product Description
Product DescriptionBig size 40mm capacity hydraulic radial drilling machine (Z3040x10/1)
Main features: Inner-outer column. Mechnical clamping for the column and Hydraulic Speed Changing. Spindle with auto-feeding. coolant, work light, available. Spindle Box machined by machining center.
Product Parameters
Specification of our radial drilling machine Z3040x10/1:
| Model | Z3032/40×10/1 | Z3050X12/1 |
| Max.Drilling capacity (mm) | 32/40 | 50 |
| Distance spindle axis to column generating line (mm) | 300-1000 | 320-1250 |
| Diameter of column (mm) | 240 | 350 |
| Spindle taper | MT4 | MT5 |
| Spindle travel (mm) | 280 | 315 |
| Spindle speeds range (r/min) | 32-2500 | 25--2000 |
| Spindle speeds series | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.1--1.25 | 0.04--3.2 |
| Mpindle Spindle feeds | 8 | 16 |
| Max.Distance spindle nose to working surface of base (mm) | 320--900 | 350-1220 |
| Dimension of worktable (mm) | 600X450X450 | 630X500X500 |
| Dimension of base (mm) | 1710X800X160 | 2050X1000X200 |
| Overall Size (mm) | 1760X800X2050 | 2150X1060X2650 |
| Power of Main motor (kW) | 2.2 | 4 |
| G.W/N.W (kg) | 1920/1830 | 3250/3000 |
| Packing dimension (cm) | 187X97X220 | 240X112X252 |
Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun Detailed Photos
Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
