Ecnomical Small Scale Flour Mill Machine
| US$19,500.00-24,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6FTF
Voltage
380V
Appearance
Horizontal
Press Materials
Corn
Press Series
Second
Condition
New
Customized
Customized
Warranty
One Year
Certification
Ce ISO
Dimension
8X3.2X4.2m(Lxwxh)
Porcess Type
Maize/Corn
Transport Package
Simple Packing
Specification
Depend on the capacity
Trademark
LONG TING
Origin
Henan China
HS Code
8437800000
Production Capacity
100000sets/Year
Product Description

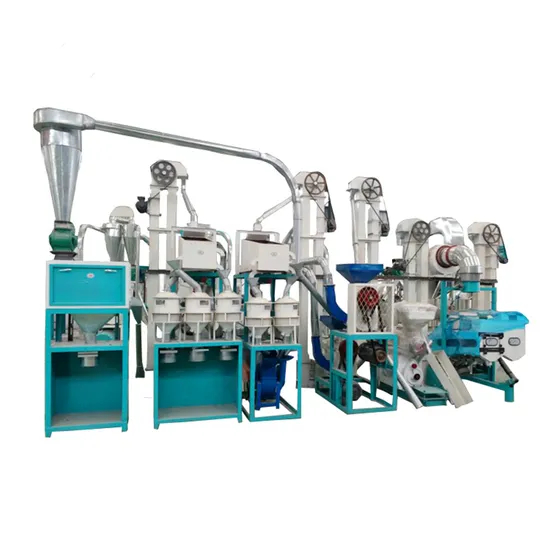

Ecnomical small scale flour mill machine1. Cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.
2. Milling part
The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving
(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.
3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.
| No. | Picture | Description | Qty | Power (kw) | Note |
| Name:Bucket elevator Model:TDTG20/10 Power:1.1kw Material:Carbon steelQ235 | 3sets | 3.3 | |||
| Name:Magnet separator Model:TCXT20 Material:Carbon steelQ235 | 1set | ||||
| Name:Cyclone seperator Model:TCXT20 Material:Carbon steelQ235 | 1set | ||||
| Name:Combined sifting and de-stoning machine Model:120 Power:0.25×2kw Material:Carbon steelQ235 | 1set | 0.5 | |||
| Name:Quadruple filter Model:550 Material:Carbon steelQ235 | 1set | ||||
| Name:Spray water machine Model:TFSH | 1set | ||||
| Name:Maize peeling machine Model:NF15A Power:15kw Material:Carbon steelQ235 | 1set | 15 | |||
| Name:Maize grinder Model:36 Power:7.5kw Material:Carbon steelQ235 | 1set | 7.5 | |||
| Name:Low pressure blower Model:4-72-4.5A Power:7.5kw Material:Carbon steelQ235 | 1set | 7.5 | |||
| Name:High pressure blower Model:6-30# Power:2.2kw Material:Carbon steelQ235 | 1sets | 2.2 | |||
| Grain silo | 1set | ||||
| Name:Roller mill Model:6F2250 Power:11kw Material:Carbon steelQ235 | 1set | 11 | |||
| Name:Roller mill Model:6F2240 Power:7.5kw Material:Carbon steelQ235 | 2sets | 15 | |||
| Name:Plan sifter Model:FSFS83×83 Power:1.5kw Material:Carbon steelQ235 | 1set | 1.5 | |||
| Auto packing machine | 1set | ||||
| Name:Brush machine Model:40×100 Power:1.5 Material:Carbon steelQ235 | 1set | 1.5 | |||
| Name:High pressure blower Model:6-30# Power:7.5kw Material:Carbon steelQ235 | 1sets | 7.5 | |||
| Name:Air seal Model:225 Material:Carbon steelQ235 | 10sets | ||||
| Name:Cyclone Model:500 | 1set | ||||
| Name:Cyclone Model:400 | 2sets | ||||
| Name:Cyclone Model:300 | 9sets | ||||
| Name:Roller frame Model:6F2250 | 1set | ||||
| Name:Roller frame Model:6F2240 | 2sets | ||||
| Name:Reducer Power:1.1kw | 1set | 1.1 | |||
| Name:Reducer Power:0.75kw | 1set | 0.75 | |||
| Cloth duster | 1set | ||||
| Packing olatform | 1set | ||||
| Air channel | 1set | ||||
| Other attachments | 1set | ||||
| Total Power:74.35(kw) | |||||
