Industrial Food Ultrafine Powder Impact Grinding Pin Disc Mill Pulverizer
Basic Info.
Model NO.
PL
Fitness of Finished Products
10-200 Mesh
Type of Cooling System
Water Cooling
Safety Switch and Dust Collector
Optional
Capacity
According to The Fitness of Finished Products.
Dust Proof Device
Pulse Dust Collector
Application
Cinnamon Black Pepper Powder Making
Type
Impact Crusher
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Available
Warranty
1 Year
Object
Cinnamon, Black Pepper, Bay Leaf
Transport Package
Standard Exprot Package
Specification
As per order
Trademark
COBRO TECH
Origin
China
Production Capacity
300 Sets/Month
Product Description

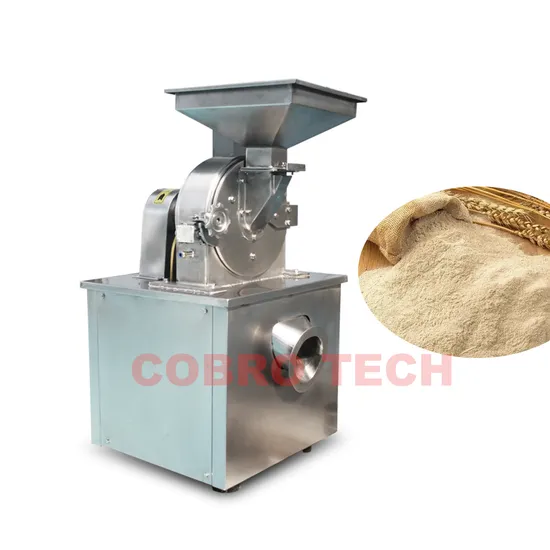

Product Description| Cinnamon black pepper powder making machine spice grinder pin mill The spice pin mill consists of hopper,fixed discs,rotating hammer,dust collector (optional),control box and other related parts.It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.Besides,the whole machine is made of stainless steel.The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the national standard and the GMP requirement. |
Product Parameters
Feature 1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution
4) Apply a linker to connect with the air conveyor,screw conveyor ,which can directly inline with mixing machine,filling machine,packing machine .
Detailed Photos
Rotated Pin Screen Wator cooling inlet
Product Application
