Professional Block Cutting Device for Advanced Solar Battery Creation

Product Description

Equipment Use: Unveiling a state-of-the-art solution engineered to elevate customer cutting efficiency to new heights. With an impressive roller length of 690mm and a versatile table size of 170/145mm*690mm*160mm*2, this powerhouse is crafted with precision to manage product thicknesses ranging from a slender 0.3mm to a solid 65mm. This adaptability ensures unmatched precision and flexibility across a diverse range of applications.

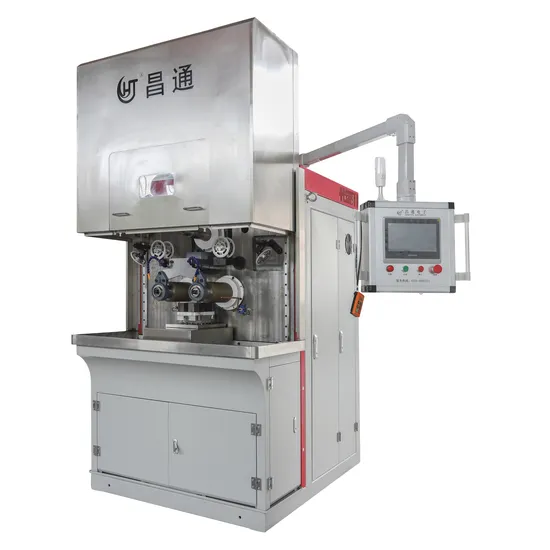

CHTXQ-690F Double Plate Multi-Wire Cutting Machine - Key Product Features
1. Independent Drive: Discover the innovation of four independently driven motors, each roller functioning as a drive shaft. This cutting-edge design reduces steel line wear on the rollers, dramatically extending their lifespan. The smartly engineered mounting holes on each roller bracket ensure the spindle's installation aligns with exact coaxial precision, thanks to advanced processing center molding techniques.
2. LED Display Option: Elevate your operational efficiency with our sophisticated LED display, delivering crystal-clear and intuitive cutting data. This cutting-edge feature revolutionizes user interaction, making operations smoother and more insightful.
3. User-Friendly Design: Our innovative under-table design redefines the loading and unloading process, allowing materials to be effortlessly cut from the bottom up. This provides operators with unmatched ease and efficiency.
4. Versatile Models: Select from our high-speed and standard models, each tailored to diverse needs. The high-speed variant enhances performance with increased line speed, significantly boosting cutting efficiency. It supports the use of finer diamond lines for cutting, augmenting precision and productivity.
5. Flexibility in Motion: The table's transverse movement capability allows it to glide effortlessly back and forth. This innovative feature enables precise tile cutting and offers the versatility of single-line cutting functionality, catering to your specific requirements.
6. Enhanced Loading Area: Featuring a generous loading area of 170/145mm*690mm*160mm*2, our machine optimizes overall cutting efficiency. It is meticulously designed to accommodate larger capacities, streamlining workflows and elevating productivity.
7. Precision and Stability: Our dedication to precision shines through with spindle accuracy of ≤0.01mm, complemented by a patented dust structure (Patent No. ZL201320681902.7). This ensures stable operation and facilitates easy disassembly for maintenance, guaranteeing long-term reliability.
8. Effortless Operation: Simplifying your operational demands, the machine is equipped with an automatic lifting shield and a fully expandable workbench. This user-oriented design makes loading and unloading materials and rolls effortlessly seamless, allowing you to focus on productivity.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

Experience forefront innovation with our double-station multi-wire cutting machine, leveraging diamond wire technology for unmatched precision. It processes products with simultaneous dual plate capability, offering a roller length of 690mm and a max cutting area of 220mm*690mm*160mm*2. The versatile rotary tool holder function handles cutting blade thicknesses from 0.5mm to 65mm, excelling in both single-line and multi-line cutting for hard and brittle material batch processing.
Step into the future with our multi-line cutting machine, utilizing cutting-edge diamond line technology. Offering a roller length of 570mm, it boasts a maximum cutting area of 220mm*570mm*160mm. The adaptable rotary tool holder function expertly manages product thicknesses from 0.3mm to 65mm, ideal for slicing hard and brittle materials in batch straight sheet processing.
Our compact multi-line cutting machine is a paragon of efficiency, featuring diamond line technology and available in both single and double station models. Designed for small batch straight sheet processing, it offers seamless specification changes, handling sheet thicknesses of 0.5mm to 30mm. Supporting both single-line and multi-line cutting, it is perfect for small batch processing of hard and brittle materials.
Yutian Changtong Eiectron Co., Ltd. proudly celebrates its rich heritage since 1998, initially known as Yutian Changtong Electronics Factory. A significant evolution occurred in 2007, marking its transformation into Yutian Changtong Electronics Co., LTD. Heralded for its trailblazing innovations, the company earned the esteemed recognition of a high-tech enterprise in Hebei Province as early as 2001, and in 2016, ascended to the status of a national high-tech enterprise. This strategic ascent included the establishment of a dynamic branch in Yantai, Shandong Province in 2006. Today, Yutian Changtong is revered as a national high-tech leader, seamlessly orchestrating a symphony of research and development, production, sales, and service in perfect harmony.
Product Introduction
Main Products: Explore our vibrant portfolio of groundbreaking products, featuring quartz crystal chips (frequency sheets), high-quality green silicon carbide powders, state-of-the-art multi-line cutting machines, and sophisticated electronic mechanical equipment, each designed to push the boundaries of innovation.
Quality Certification
Since its inception, Yutian Changtong Eiectron Co., Ltd. has thrived under the empowering belief that technology is the ultimate catalyst for productivity. By nurturing strategic alliances with prestigious academic and research institutions such as Northeastern University, Yantai University, Hebei University, Dongguan University of Technology, Beijing Institute of Printing Machinery, and the esteemed Chinese Academy of Sciences (units 203, 45, 707, 607), the company has made significant strides. These illustrious partnerships have resulted in the securing of multiple patents, with one renowned patent proudly exhibited in the prestigious National Science and Technology Database.
Yutian Changtong Eiectron Co., Ltd. stands as a shining beacon of distinction, proudly acknowledged as a 'High-Tech Enterprise of Hebei Province'. The company has amassed numerous prestigious accolades including 'Small and Medium-Sized Enterprises of Science and Technology in Hebei Province', the esteemed title of 'National High-Tech Enterprise', and the honor of being a 'Specialized and Special New Enterprise'. Further enhancing its esteemed reputation, the company is celebrated as a 'Municipal Enterprise Technology Center', 'Municipal Industrial Design Center', and a highly respected 'National 3A Credit Enterprise'. These accolades highlight our unwavering pursuit of innovation and our steadfast commitment to delivering unparalleled excellence within the industry.
Value Concept
Guided by steadfast principles of 'Ethical, Integrity Management', Yutian Changtong Eiectron Co., Ltd. has consistently achieved recognition as an exemplary A-level tax entity across provinces, cities, and counties. Our unwavering devotion to honesty and quality has earned us the distinguished titles of 'Honest Enterprise', 'Quality and Credit Enterprise', and 'Outstanding Builders of Socialist Undertakings with Chinese Characteristics'. These esteemed honors serve as a testament to our unwavering commitment to integrity and unparalleled quality in every facet of our operations.
