Factory Industrial Milk Juice Yogurt Jelly Cup Filling Sealing Packing Machine Plant
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GY-P
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Cup
Packaging Material
Plastic
Transport Package
Wooden Case
Specification
CE
Trademark
genyond
Origin
Shanghai, China
HS Code
84223010
Production Capacity
1000-10000 Cups Per Hour
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

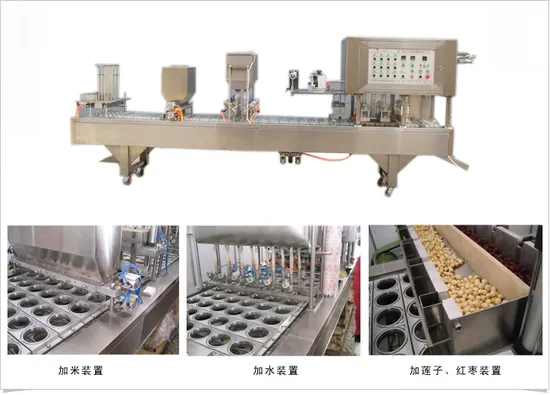

This machine is specially designed for liquid and semi-liquid products to be filled and sealed with plastic cup.
Our cups filling and sealing machines applied with world famous electrical and pneumatic components. All the parts of machine contact with powder are made of stainless steel.
| Working Process | Cup loading | Cups loading one by one; Pneumatic cylinder control; 1-4 cups loading holes in one line. |
| Filling | Easy to open and close for each tank. Piston filling type for each filling head. All parts/tubes in contact with the product are made of SUS-304. | |
| UV sterilization | Sterilize cups and products. | |
| Loading foil | Suck and pick foils by vacuum; Pneumatic cylinder control; 1-4 silicone suckers. | |
| First sealing | 1-4 copper sealing heads; Temperature is adjustable: 0-400°C; Pneumatic cylinder control. | |
| Second sealing | 1-4 copper sealing heads; Temperature is adjustable: 0-400°C; Pneumatic cylinder control. | |
| Oil printing | Automatic print date or lot numbers. | |
| Sealed cup picking out | Finished cup be picked out. |
We can provide the turnkey project for processing the daily ,juice ,jelly ,ice cream ,honey etc.
