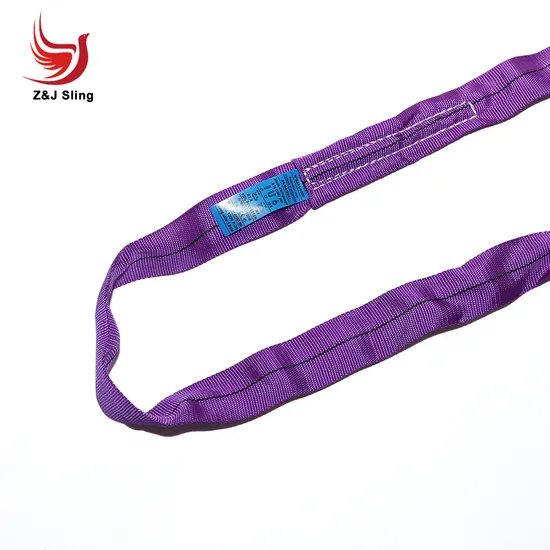

Round Polyester Webbing Sling High Tenacity Lifting Sling Belt

Product Description

100% Polyester Low elongation Each stripe is equal to 1 ton capacity Color: Violet, Green, Yellow Grey, Red, Brown, Blue ect. as standard or required. WLL: From 1Ton to 20Ton Safety Factor: 5:1, 6:1, 7: 1 Length: As required Width: As required Packing: PE shrink wrap, carton and pallet

Stock No.	Color	WLL	SWL WLL(t) M CC							Double multi-set SWL(t)
			vertical	choke	<7º	a>7º a<45º	a>45º a<60º	a<45º	a>45º a<60º	a<45º	a<45º	a<60º	a>45º a<60º
			M=1.0	M=0.8	M=2.0	M=1.4	M=1.0	M=0.7	M=0.5	M=1.4	M=1.12	M=1.0	M=0.8
RS010	Violet	1.0t	1.0	0.8	2.0	1.4	1.0	0.7	0.5	1.4	1.1	1.0	0.8
RS020	Green	2.0t	2.0	1.6	4.0	2.8	2.0	1.4	1.0	2.8	2.2	2.0	1.6
RS030	Yellow	3.0t	3.0	2.4	6.0	4.2	3.0	2.1	1.5	4.2	3.4	3.0	2.4
RS040	Grey	4.0t	4.0	3.2	8.0	5.6	4.0	2.8	2.0	5.6	4.5	4.0	3.2
RS050	Red	5.0t	5.0	4.0	10.0	7.0	5.0	3.5	2.5	7.0	5.6	5.0	4.0
RS060	Brown	6.0t	6.0	4.8	12.0	8.4	6.0	4.2	3.0	8.4	6.7	6.0	4.8
RS080	Blue	8.0t	8.0	6.4	16.0	11.2	8.0	5.6	4.0	11.2	9.0	8.0	6.4
RS100	Orange	10.0t	10.0	8.0	20.0	14.0	10.0	7.0	5.0	14.0	11.2	10.0	8.0
RS150	Orange	15.0t	15.0	12.0	30.0	21.0	15.0	10.5	7.5	21.0	16.8	15.0	12.0
RS200	Orange	20.0t	20.0	16.0	40.0	28.0	20.0	14.0	10.0	28.0	22.4	20.0	16.0
RS300	Orange	30.0t	30.0	24.0	60.0	42.0	30.0	21.0	15.0	42.0	33.6	30.0	24.0
RS500	Orange	50.0t	50.0	40.0	100.0	70.0	50.0	35.0	25.0	70.0	56.0	50.0	40.0
RS800	Orange	80.0t	80.0	64.0	160.0	112.0	80.0	56.0	40.0	112.0	89.6	80.0	64.0
RST10	Orange	100.0t	100.0	80.0	200.0	140.0	100.0	70.0	50.0	140.0	112.0	100.0	80.0
Comply with ISO4878 EN1492-2 Standard

Polyester Webbing sling has below advantage:
1.Used for lifting of expensive,fragile or delicated load.
2.The softeness of sling will not scratch loads.
3.Quickly and easy to handle due to light and flexible properity.
4.Properity of UV,Acid,moist-resistance,Long life of using.
5.Low prolong rate.
6.-40ºC-100ºC working range.
Application:
Webbing lifting slings are used in variety of ways throughout several industries, including marine, construction, engineering, power, defense and transport industries, warehousing, house removals and manufacturing plants.
Notes:
1. Always protect webbing from hot surfaces, sharp edges and acids
2. Don't use if webbing is torn or frayed or if hardware is damaged
3. Observe working load limit (WLL) as started to determine quantity of strap assemblies
Necessary for quotation:
1. Quantity you need
2. WLL ( Working limited load)
3. Length and Width
4. Safety factor
5. Webbing Sling Type
6. Other special requirement Company Profile
