Elsky Small OPS 4K Motherboard Raptor Lake 13th Gen U/P/H Series I3, I5, I7, I9
Basic Info.
Model NO.
OPS-13U
HDD Capacity
1TB
GPU
Intel
Use
Commercial
Memory Capacity
32GB
Memory Type
DDR4
CPU Frequency
1.2-5.4
Transport Package
Cartoon
Specification
165mm*114mm*26mm
Trademark
Elsky
Origin
Shenzhen, China
HS Code
8471504090
Production Capacity
1000000
Product Description
Elsky Small OPS motherboard Alder Lake 13th generation CPU with i3 i5 i7 i9 DDR4 32G 1LAN 4K| PC model | OPS-13U | |
| PC size | 165mm(L)*114mm(W)*26mm(H) | |
| CPU processor | Support Intel Raptor Lake 13th gen U/P/H series i3, i5, i7,i9 and other CPU | |
| Memory support | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200 MHz memory, supports up to 32 GB | |
| Power supply | 1*DC_IN | Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The motherboard consumes about 60 W at full load. It is recommended to use a 12V 7A or 19V 5A or above power supply. |
| Display function | Integrated Intel(R) UHD Graphics super core graphics card, supports single display, dual display/triple display/quad display copy, dual display/triple display/quad display expansion, supports dual display under SHELL, does not support DOS | |
| 1*HDMI 2.0 interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*DP interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI 2.0 interface (daughter card side) | Support 4K resolution 4096/3840*2160@ 60Hz | |
| 1*DP interface (daughter card side) | Support 4K resolution 4096/3840*2160@ 60Hz | |
| Internet function | 1*LAN interface | Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function |
| 1*M2_WIFI interface | Support Key-E interface M.2_2230 WIF/Bluetooth module | |
| Hard drive function | 1*NGFF1 (M.2) interface | Supports Key-M interface M.2 2280/2242 hard disk; supports NVME protocol by default, and can change the hardware to support SATA protocol |
| 1*JSATA interface | Supports SATA3.0 signal by default and supports 2.5-inch SSD disk/mechanical hard disk | |

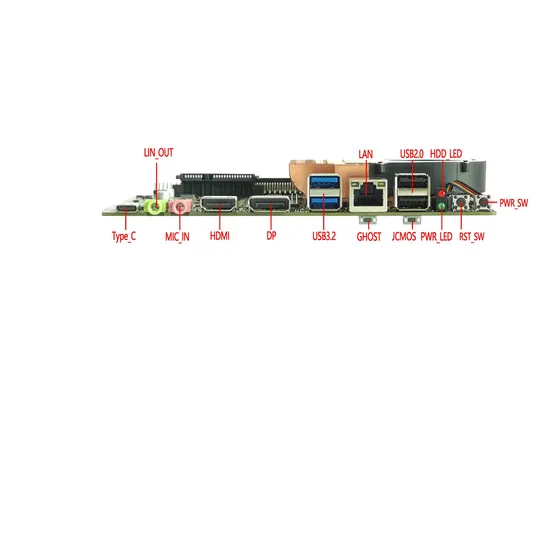

| Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller | |
| 1*LIN_OUT interface | Support audio output (green) | |
| 1*MIC_IN interface | Support microphone input (red) | |
| USB function | 2*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
| 2*USB2.0 interface | Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps (60MB/s) | |
| 1*Type-C interface | Standard Type-C interface, only supports USB function and does not support display function | |
| Switch function | 1*PWR_SW 1 button | Switch button |
| 1* RST_SW1 button | Support hardware restart | |
| Other I/O | 1*SIM_CARD card slot | Supports SIM card, SIM card is required when using 3G/4G |
| 1*JCMOS button | Mainboard reset and discharge buttons | |
| 1*OPS interface | Standard 80Pin OPS interface | |
| 1*One-click restore button | Support system one-click restore | |
| 1*LED | Power and hard drive status indicators | |
| Operating environment | Working temperature: -10ºC~60ºC; Working humidity: 5%~95% relative humidity, no condensation | |
| BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. | |
| Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
| Operating system | Support Windows 11, Windows 10, Kirin system, Tongxin system, Linux, etc. | |
Packaging & Shipping Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
