Ck6140 Ck6150 Ck6432 Metal Aluminium CNC Lathe Machhine with Good Quality Good Prices Sp2116 GSK Siemens Fanuc Mitsubish Syntech

Product Description

Product Description

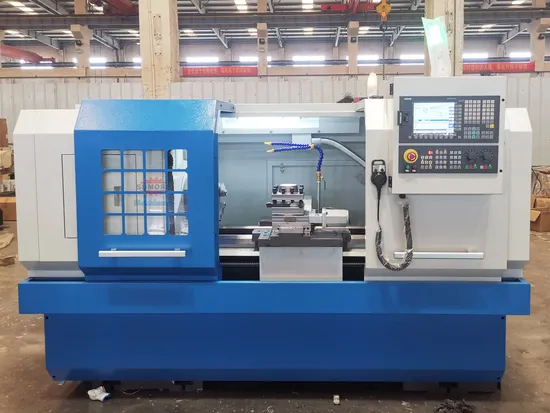

China Best High Quality Metal Processing Torno Horizontal CNC Lathe Machine Price 360/400x 500/750/1000/1500mm
(Hi friend, our CNC lathes can be from small to big size different enclosure and design, the web pages may be too limited, so please contact us for more details)
-----------------------
Quick Details
Main specification of cnc lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 500/750/1000/1500mm
Swing over bed: 400mm
Spindle taper: MT6
Spindle bore: Φ60
GSK, FANUC or SIEMSN control system
Desc:
SP2116 cnc lathe machine is classic and new condition, and we won't provide used cnc lathe machine, this industrial cnc lathe machine belongs to our mature cnc lathe, the power of main motor is 5.5kw. Bed width is strong 330 mm. Factory low cost with high quality, quite competitive in the market. Features / advantage of cnc lathe machine is as below:
1.Precision rolling screw vice transmission, using precision linear guide rail, high precision
2. This cnc lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. This lathe machine has induction hardened bed way.
4. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission
5.The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
6. Fully enclosed protective cover.
7. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries.
8.The spindle is the highrotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ60mm while the diameter
of chuck is φ200mm.
9. deliver fast ,Promise dispatch goods is on time .
10. Auto lubrication coolant system, working lamp, tri-colored lamp indication.
11. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
12. Optional pneumatic or hydraulic chuck and tailstock are available for this cnc lathe machine

Model	SP2116
Swing over Bed	360/400 mm
Swing over Carriage	190/220 mm
Rail width	330mm
Spindle nose	A2-6
Spindle Taper	MT6
Spindle Bore	60 mm
Spindle Speed	150 - 2,500 rpm
Distance Between Centers	750/1000/1500 mm
X- travel	250mm
Size of 3-jaw chuck	Ø200/250mm
Stations of tool carrier	4/6/8 or tool array
Min. setting unit of motor (X)cross	0.001mm
Min. setting unit of motor (Z)cross	0.001mm
Moving speed of (X)cross	4m/min
Moving speed of (Z)cross	6m/min
Max. size of tool post	20/25mm
Tailstock sleeve dia.	Ø55mm
Tailstock sleeve taper	MT4
Tailstock sleeve travel	120 mm
Coolant motor power	120W
Motor Power	5500W
Voltage and Frequency	Customerized
Packing Size (LxWxH)	2300 x 1550 x 1950 mm
Net Weight	1600 kg
Gross Weight	1700 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
