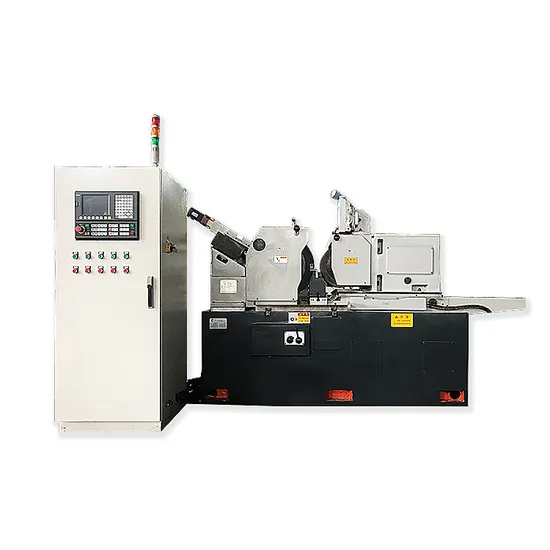

CNC Centerless Grinding Machine with 3 Axes

Product Description

Products Description
Notes: The product belongs to the seller before payment of 100%. Payment terms: Payment: advance payment of T/T 30% deposit, T/T 70% balance prior shipment factory. Pay in US dollars above while exchange rate change between USD and RMB ≤1%; if change >1%, the two parties reach an agreement after discussion/consultation. The seller prepares good after receiving deposit; contact buyer for trial; The buyer confirm the trial and finish balance payment, the seller prepare shipment. Currency of settlement: US dollars/RMB. Delivery time: 90 days. Technical Data One servo axis, Mitsubishi Q/R series control system (Siemens CNC for option) Axes Y for regulating wheel frame servo feed, min. 0.001mm. Axis X for feeding of grinding wheel dresser. Axis Z for reciprocating of grinding wheel dresser. Please refer to the picture below:
Machine performance and technical data. 2.1. Machine body
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability.
2.2. GW and RW(Regulating wheel).
GW and RW are cantilever type ,easier for wheel changing.
GW fixed on the machine bed, with better reliability and stability.
Adopts multi-pieces bush-bearings for the wheel spindle, better rigidity for grinding durability.
2.3. Feeding
The flat-V shaped guideway & ball screw equipped servo motor supports the regulating wheel feeding.
Servo motor drives ball-screw through shaft coupling, min. feed 0.001mm.
2.4. Dressing for GW and RW
GW and RW dressers: Hydraulic cylinder for reciprocating motion, hand wheel for dresser feeding.

2.5.Electric
Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for grinding, dressing,feeding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional.
2.6. Cooling and lubrication
Coolant paper tape filter with magnetic separator. (optional configuration)
Technical Data

		1 Axis
In-feed Grinding	Dia.	5-50mm
	Length	140mm
Through grinding	Dia.	5-50mm
GW SPEC. (O.D.*width*I.D.)		400*150*203mm
RW SPEC.(O.D.*width*I.D.)		PSA300*150*127mm
GW Speed		1668r/min
RW Speed (stepless)		20-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	0°~ +3°
RW carriage min. feed		0.001mm
GW dresser min feed		0.01mm
Height from center line of GW & RW to work rest		220mm
GW Motor		11kw
RW Motor		1.5kw
Power Supply		3N 50HZ 380V (optional)
Dimension(L*W*H)		1920*1681*1479mm
Machine Weight		About 2800KG
Accuracy (standard bars)	Roundness	0.002mm
	Cylindricity	0.003mm
	Roughness	Ra.0.32μm

Main Accessories

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q /R series	1	set	Mitsubishi
Servo motor		1	set	Yaskawa
Operation display screen	10'	1	set	Weinview
Ball screw		1	sets	Nanjing
Grinding wheel motor		1	pc	Chisheng
Regulating wheel motor		1	pc	Chisheng
Low-voltage apparatus		1	set	Chint
