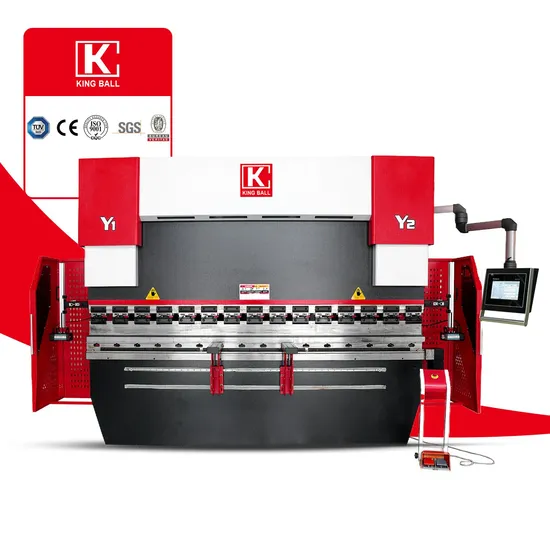

India-Hot Factory Direct Sale 1600mm 1800mm 2000mm 2500mm Length Nc CNC Press Brake Bending Machine 30 Ton-1000 Ton

Product Description

Electro-hydraulic CNC Press Brake			KCN-4016	KCN-6325	KCN-10032
Capacity		kN	400	630	1000
Max. Bending Length		mm	1600	2500	3200
Between Columns		mm	1200	2100	2600
Max. Shut Height		mm	430	460	480
Slide Stroke		mm	150	150	200
Throat Depth		mm	300	320	400
Down Speed		mm/min	180	180	160
Pressing Speed		mm/min	12	12	10
Return Speed		mm/min	160	160	130
Main Motor Power		kW	5.5	5.5	7.5
X axis stroke		mm	500	500	500
X axis speed		mm/s	300	300	300
R axis stroke		mm	200	200	200
R axis speed		mm/s	60	60	60
Outline Size	L	mm	2100	3000	3700
	W	mm	1450	1650	1750
	H	mm	2150	2350	2450
Weight		kg	2800	5600	7500

Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms. Linda Zhang Customer Manager E-mai:linda@jinqiu.cc FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
