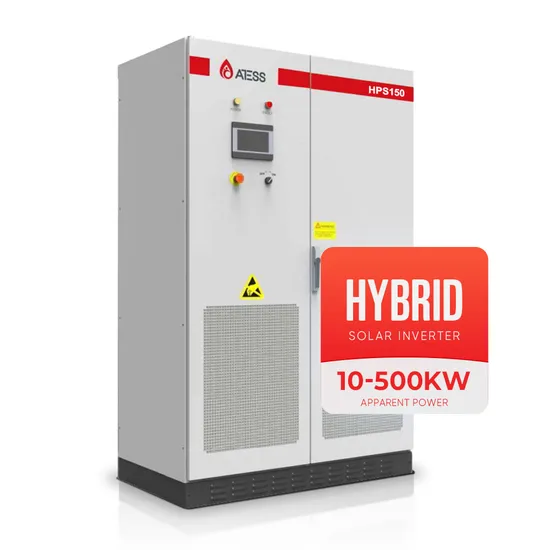

Atess Off Grid Solar Inverter 50 Kw 30Kw 150Kw Atess Hybrid All In One Inverters

Product Description

Product Description
ATESS innovative hybrid inverter simplifies commercial solar installations. This powerful all-in-one solution handles everything, supporting systems up to 600kW. Enjoy the flexibility to adapt your solar power generation as your business grows.
Technical Specification

Model	HPS30	HPS50	HPS100	HPS120	HPS150
AC (Grid-connected)
Apparent power	33kVA	55kVA	110kVA	132kVA	165kVA
Rated power	30kW	50kW	100kW	120kW	150kW
Rated voltage	400V	400V	400V	400V	400V
Rated current	43A	72A	144A	173A	217A
Voltage range	360V - 440V
Rated frequency	50/60Hz
Frequency range	45~65Hz
THDI	<3%
PF	0.8lagging~0.8leading
AC connection	3/N/PE
AC input	60kVA	100kVA	200kVA	240kVA	240kVA
AC(Off-grid)
Apparent power	33kVA	55kVA	110kVA	132kVA	165kVA
Rated power	30kW	50kW	100kW	120kW	150kW
Rated voltage	400V	400V	400V	400V	400V
Rated current	43A	72A	144A	173A	217A
THDU	≤2%linear
Rated frequency	50/60Hz
Overload capability	110%-10 mins 120%-1 min
DC (Battery and PV)
Max. PV open-circuit voltage	1000V DC
Max. PV power	45kWp	75kWp	150kWp	180kWp	225kWp
PV MPPT voltage range	480V-800V DC
Battery voltage range at Max. charge power	450V-600V	500V-600V	500V-600V	517V-600V	500V-600V
Battery voltage range	352-600V
Max. charge power	45kWp	75kWp	150kWp	180kWp	225kWp
Max. discharge power	33kW	55kW	110kW	132kW	165kW
Max. charge current	100A	150A	300A	350A	450A
Max. discharge current	93A	156A	313A	374A	467A
General Information
Protection degree	IP20
Noise emission	<65dB(A)@1m
Operating temperature	-25 °C~+55 °C
Cooling	Forced-air
Relative humidity	0-95% non-condensing
Maximum altitude	6000m (derate over 3000m)
Dimension (W/H/D)	700/1660/600mm	950/1860/750mm	1200/1900/800mm	1200/1900/800mm	1200/1900/800mm
Weight	355kg	610kg	948kg	1025kg	1230kg
Build-in transformer	Yes
Transfer between on/off grid	Automatic≤10ms
Standby consumption	<30W
Communication
Display	Touch screen
Communication	RS485/CAN

Application The ATESS HPS is a revolutionary bidirectional battery inverter that acts as the brains of your energy storage system. It unlocks the full potential of your batteries, ensuring a reliable and continuous flow of power for your home or business.
Here's how it works:
Stores Excess Solar Energy: The ATESS HPS intelligently converts the direct current (DC) electricity generated by your solar panels into usable alternating current (AC) electricity. This AC power is then stored in your battery bank for later use. Maximizes Solar Usage: Instead of relying solely on the grid, you can prioritize using your self-generated clean energy. The ATESS HPS seamlessly integrates with your solar inverter, maximizing the benefits of your solar power system. Ensures Backup Power: In case of a power outage, the ATESS HPS seamlessly draws energy from your stored batteries to keep your essential appliances and electronics running smoothly. Maintains Grid Harmony: The ATESS HPS can also intelligently draw power from the grid when needed, ensuring a stable and balanced energy flow. * Open station supports one-click installation and registration* Problem support one-click dispatch and navigation* Safe operation, traceable logs, etc* Support full lifecycle data storage to ensure data security and reliability Global Projects Package&Delivery Packing Details : In carton on the pallet or wooden boxDelivery Details : 5-15 working days
