Automatic 3-in-1 Rotary Juice Filling and Packaging Machine/Production Line Price

Product Description

Product Description
Drink Juice Filling line
Introduction:
The machine is combined with rinsing, filling and capping, which special designed for glass bottled juice or energy drink. It is stable characteristic, advanced technology, nice appearance and complete function.Complete Drink Juice Filling Plant Flow chart:
1)water purification system
Raw water pump → Silica sand filter → Activated carbon filter → Sodium ion exchanger → 5um cartridge filter → 1um cartridge filter → High pressure pump → Reverse Osmosis system → UV system → Water storage tank→ Ozone generator → Ozone mixing tower .
2) Pre- treatment system
Sugar Melting Machine → Syrup Filter→Juice Mixing and Heating Tank→Double Filter→Vacuum de-aerator→ High temperature sterilizer tank
3) Bottle Juice filling & packing system
Cap loader → Automatic 3-in-1 juice filling machine → Flat conveyor → Light Checker → Bottle dryer → labeling machine → Date/code laser printer → Automatic PE shrink wrapping Machine.
4)Empty Bottle making system
High pressure air compressor → High pressure air tank → High pressure filter → High pressure air dryer → Low pressure air compressor → Low pressure air filters → Low pressure air dryer → Mold chiller → Bottle blowing machine

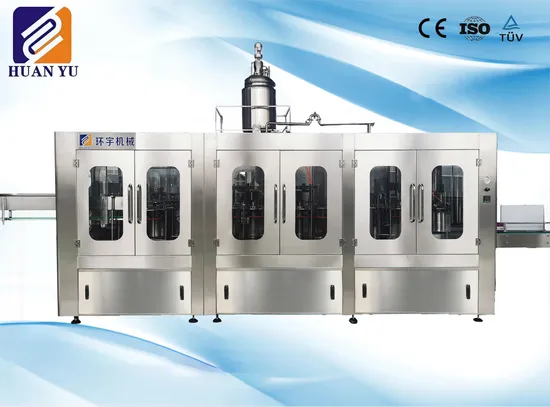

3 in 1 type Drink Juice washing filling capping machine
Technical Character

Model	Rated production capacity(500ml)	Number of rinsing head	Number of filling head	Number of capping head	Overall size LxWxH(mm)
RXGF14-12-5	2400-3400BPH(500ml)	14	12	5	2360*1770*1800
RXGF16-16-5	4000-5000BPH(500ml)	16	16	5	2760*2060*1910
RXGF24-24-8	7000-8000BPH(500ml)	24	24	8	2800*2230*2000
RXGF32-32-8	10000-12000BPH(500ml)	32	32	8	4275*2960*1984
RXGF40-40-10	14000-15000BPH(500ml)	40	40	10	4697*3322*2700
RXGF50-50-12	17000-18000BPH(500ml)	50	50	12	5905*4125*2000
RXGF72-60-15	22000-24000BPH(500ml)	72	60	15	6700*5157*2010

3 in 1 type Drink Juice washing filling capping machine features
Main features:

Rinser	Rinsing part The machine is rotary rinsing machine, mainly used for rinsing beverage, mineral water bottles etc. The new bottle enters into the equipment through bottle distribution screw and star wheel, and its neck is clipped to mouth down by the clamp and turner device, dry after rinsing, and turn to mouth up automatically, then enters into the filling machine through bottle-outlet star wheel conveyor.
Filler	Filling Part It is advanced unique filling valve, no spring in the valve, and no touch with the spring for the products, which will help the cleaning of the internal valve. PLC control, frequency control; bottle neck clip filling technologies; upper cylinder and lower recycle cylinder is connected with hard pipe; gravity filling, negative pressure reflux; unique material temperature control system and liquid level automatic inspection.
Capper	Capping part The capping is magnetic capping, with overload protection function, stable and reliable capping torque. Import motor gear box, reduce the secondary pollution of the bottle cap, 304 stainless steel cap chute tank, cap silo and cap chute tank with electronic capless inspection system, automatic control cap conveyor machine and running speed for the machine.
3 IN 1 Machine	Machine structure 1) washing, filling and capping part in one unit; 2) one driving system makes the speed more stable 3) need one person to operate the machine 4) no noisy while running 5) more compact 6)different bottles can be applied in same machine (the bottle neck should be the same)

Production Line Flow
Water Treatment System
Water treatment system,also called water filtration sterlizer system, is the process of purifying the raw water by a series equipments and devices to be drinkable.The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc.
Automatic Bottle Blowing Machine
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Shrink Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
Capability Character
It adopts hanging type conveying-bottle structure to make changing bottle more convenient,faster and easier.Themain machine adopts advanced PLC control technology.The key electric elements adopt international famous products.
Factory show
ZhangJiaGang HuanYu Beverage Machinery Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
