High-Speed 4-Foot Wood Log Veneer Peeling Machine for Efficient Processing

Product Description

Product Description
The spindleless rotary peeling machine is used to process log into continuous veneer strips for plywood and wood based panel.
It is mainly used to recycle the remaining wood cores peeled by the spindle rotary peeling machine or peel the smaller log processed by the wood log debarker.
USAGE:
Cut the log into veneer.
For furniture, decoration, construction...

Working principle:
1. The wood log is fixed by 3 rollers.
2. With the continuous rotation of rollers,
the log will be peeled into veneer by knife.


Product Parameters

1	Model	BWXQ-L1500-D550	BWXQ-L2700-D550	BWXQ-L3300-D550
2	Max. log length	1500 mm	2700 mm	3300 mm
3	Log diameter range	32 - 550 mm	32 - 550 mm	35 - 550 mm
4	Veneer thickness	1 - 3 mm	1 - 3.6 mm	1 - 3.8 mm
5	Peeling speed	45 - 90 m / min (adjustable)	45 - 90 m / min	0 - 80 m / min
6	Total motor power	33.9 KW (11+5.5*2+7.5+2.2+2.2)	41 KW ( 7.5 * 4 + 11)	75KW ( 11*2+15*2+15+4+4)
7	Machine size	4600 * 2000 * 1600 mm	5300 * 2100 * 1500 mm	5300 * 2100 * 1500 mm
8	Machine weight	6800 KG	8500 KG	9300 mm

Above parameters are just for reference,
they can be customized according to requirements.

1	Model	BWXQ-L1500-D550
2	Wood log size	Length 1500 mm
		Diameter 32 - 550 mm
3	Wood veneer thickness	1 - 3 mm
4	Peeling knife size	1500 * 140 * 12.7 mm
5	Double roller	roller diameter 125 mm
		R87 hardened reducer , 1 piece
		11 KW motor, 1 piece
6	Single roller	diameter 125 mm
		R87 hardened reducer, 2 pieces
		5.5 KW motor, 2 pieces
7	Feeding motor	7.5 KW Servo Motor , 1 piece
8	Guillotine	motor 2 2 KW, RV 90 hardened reducer
9	Rubber roller	motor 2.2 KW, RV 90 hardened reducer
10	Roller diameter	150 mm
11	Feeding screw diameter	92 mm
12	Sliding style	round bar 2 pieces, sliding block
13	Peeling speed	45 - 90 m / min (adjustable)
14	Total motor power	33.9 KW
15	Machine size	4600 * 2000 * 1600 mm
16	Machine weight	6800 KG

Machine Features
Main frame:
made of high-strength steel to ensure the stability and durability of the structure
Rollers:
Chrome plated for more wear resistance, with various patterns to adapt different kinds of wood and to increase friction, the log is stably fixed on the machine for rotary cutting.
Servo Motor:
Equipped with frequency converter,
adjust rotary cutting speed according to needs.
Precisely control the size, thickness and quality of every veneer.
Lead screw:
International famous brand,
hardened by quenching treatment, longer life
PLC system:
Simple interface, simple operation
Safety protection device:
Set protective covers in key parts to avoid accidents according to past experience.

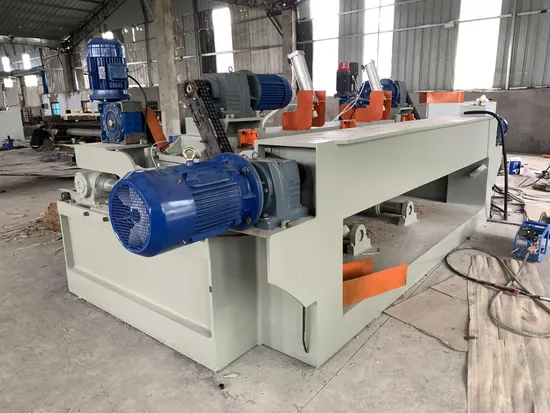

Machine Photos for Reference


Company Profile


Welcome to consult about any of the above products

Linyi Zhonghe Machinery Company
is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine,.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer,
glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector,
stainless steel plates, cushion pads, etc.3-Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

Our Advantages

1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
The layout of the factory is designed reasonably to meet safety production and high efficiency.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market,
our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, who will be sent to the customer's factory to assist in the installation and debugging of the production line until it runs well.
4. One-stop solution
We provide one-stop service, including market analysis and professional technical consultation,
raw materials, equipment installation, personnel training, professional after-sales service team.
5. Quality control
We guarantee strict quality control of equipment in production before leaving the factory
and a complete quality management system for purchased parts.
Welcome you to make videos or come to the factory to know the production status.
6.Pre-sales service
According to the needs of customers, to provide data, pictures, videos for reference,
to give timely answers to customer questions, to make customers satisfied is our purpose
7.After-sales service
We offer installation, one year warranty, lifetime parts replacement and repair services.
Customers can contact us anytime and anywhere by email, and if necessary,
we will let professional technicians to solve the problem.
FAQ
Frequently Asked Questions
1. About Customization :
All the size, color, overall shape... of our products can be customized,
we will try our best to meet your needs.
If you have any special needs, we can customize the machines according to your requirements.
2. Price changes:
The price of the product will change according to the real-time price of the raw material.
3. What products does our company offer?
Our company mainly provides equipment for the plywood and veneer industry.
Our main products include:
Wood Veneer Machines, Plywood Making Machines
Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
4. What is our delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and needs.
The exact delivery time will depend on the type and quantity of equipment ordered.
5. What warranty do we offer on your products?
We offer a one-year warranty on major components of our machines.
The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
6. Do we provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
Online Support:
We provide video tutorials, technical drawings and installation manuals
to assist with the setup and operation of our equipment.
Offline Support:
Our experienced technical staffs can assist with on-site installation and commissioning,
ensuring that the machines are properly set up and fully operational.
7. Which countries do we frequently export to?
We regularly export to various countries, including:
Brazil (where we have local distributors), Argentina, Paraguay, Fiji,Pakistan, Bulgaria, Ghana Etc.
We have experience in working with these countries.
Welcome you to visit their factories and see our machines in person.
