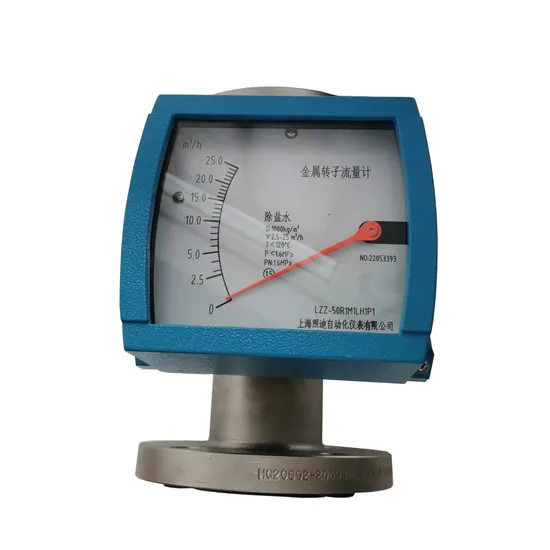

Stainless Steel Anti-Corrosion Water Air Flow Meter Float Flow Meter

Product Description

Stainless steel anti-corrosion water air flow meter Float flow meter
Product Introduction
The structure of a float flowmeter is a vertical conical metal tube with a gradually expanding cross-sectional area from bottom to top, equipped with a float made
of metal or other materials that can rotate freely. The measured fluid enters from the bottom of the metal tube and flows out from the top.
Float flowmeter is suitable for high temperature, high pressure and strong corrosive medium; It can be used in inflammable and explosive dangerous places,for medium with small diameter and low velocity within DN200.
Features
Simple structure,
Reliable operation,
wide application range,
Accurate measurement
Convenient installation
technical parameter

Measuring range	Water, air
precision	1.5 1.0
Pressure level	DN15-DN50 4.0MPa ;DN80-DN200 1.6MPa
Pressure loss	7KPa-70KPa
Medium temperature	-40-100-450ºC
Power supply	24V DC Two wire; 85-265V AC 50HZ ; Battery powered, can last for three years
Signal output	4-20mA ; Upper and lower instantaneous flow alarm; Relay output
LCD display	Instantaneous flow display value range 0-50000
Protection level	IP65
