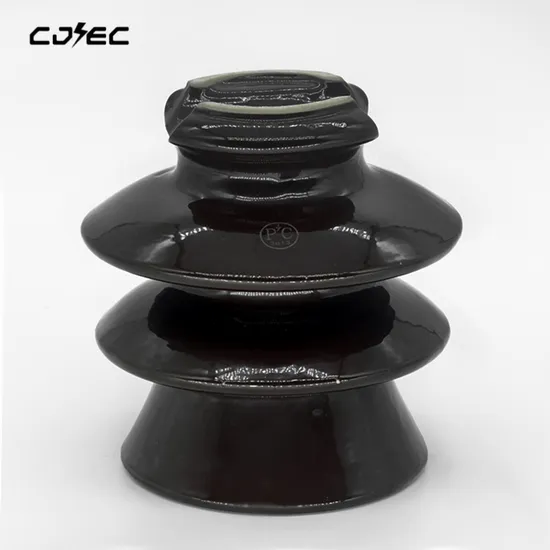

11 Kv Pin Insulator P-11-Y for India, Bangladesh, Cambodia and Indonesia
| US$0.75-1.39 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
P-11-Y
Structure
Pin Insulator
Type
A Type Insulator
Usage
High Voltage Power Transmission, Insulation, Electrical Installation
Size of Bearing Capacity
11kn
Certification
ISO9001, IEC
Color
Grey , Brown or White
Creepage Distance
900mm
Cantilever Strength
11kn
Net Weight
1.8kg
Transport Package
1000*1000*1000mm
Trademark
JOHNSON
Origin
China
HS Code
8546209090
Production Capacity
100000
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
1.000kg
Product Description
Product DescriptionBS 11kv 33kv different types of high voltage insulators
is used on crossarm of electrical poles to support conductors, normally from 11KV to 36KV
Our services :
1) Factory direct prize
2) ANSI BS GB IEC DIN AS standard
3) Free samples
4) Timely delivery
5) Customer design
Detailed Photos
| Pin type porcelain insulators | ||||||
| type | P-11-Y | P-15-Y | P-22-Y | P-33-Y | P-36-Y | |
| Dimensions | ||||||
| Diameter | mm | 135 | 230 | 280 | 320 | |
| Height | mm | 140 | 165 | 244 | 245 | |
| Total creepage distance | mm | 254 | 298 | 432 | 630 | 900 |
| Protected creepage distance | mm | 102 | 133 | 200 | 267 | 450 |
| Recommended pin height | mm | 152 | 165 | 178 | 216 | 305 |
| Mechanical Values | ||||||
| Cantilever strength | kn | 11 | 11 | 11 | 11 | 10 |
| Electrical Values | ||||||
| Type application voltage | kv | 11 | 15 | 22 | 33 | 36 |
| Power frequency dry flashover voltage | kv | 75 | 80 | 100 | 135 | 160 |
| Power frequency wet flashover voltage | kv | 50 | 55 | 60 | 85 | 110 |
| 50% impulse flashover voltage,positive | kv | 115 | 130 | 160 | 185 | 190 |
| 50% impulse flashover voltage,negative | kv | 150 | 175 | 205 | 205 | 200 |
| Power frequency puncture voltage | kv | 150 | 135 | 145 | 185 | 200 |
| Radio influence Voltage Data | ||||||
| Test voltage RMS to ground | kv | 15 | 15 | 22 | 30 | 22 |
| Maximum RIV at 1000kHz | μv | 100 | 100 | 100 | 200 | 30dB |
| Net weight,approximate | kg | 1.8 | 2.0 | 5.0 | 11.5 | 12.5 |
