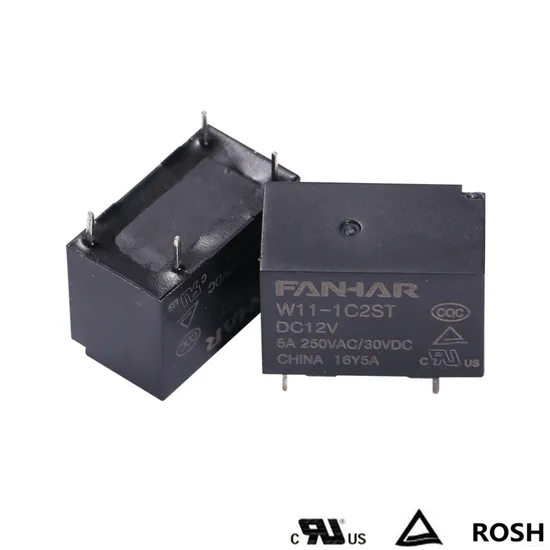

Power Relay 5A/10A for Smart Home
| US$0.20-0.40 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
W11
Electricity Type
Dc
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Subminiature
Type
Electric Parameter Relay
Certification
UL TUV CQC
Contact Material
Agsno2 Agni
Installation Type
PCB
UL Insulation Class
F
Operate Time
Max.15ms
Release Time
Max.10ms
Humidity
5% to 90%
Temperature
-45 to +85
Contact Form
Transformation
Transport Package
Export Carton
Specification
31.5*27*18.5(mm)
Trademark
Fanhar
Origin
China
HS Code
8536411000
Production Capacity
2500000-3000000PCS/Month
Product Description
Basic Info 10A switching capability Contact arrangement:1A,1C Provide high sensitivity type of products, coil power consumption is 200mW Breakdown voltage (between coil and contacts):5KV Creepage distance and air distance are greater than10mm We can provide the product with ambient temperature is 105ºC UL insulation system:Class F Environmental friendly product(RoHS compliant) Outline Dimensions:(18.6×10.3×13.2)mm Main application:Home appliance,Smart home,Electric power meter>> En388 Latex Wrinkled Coated Safety Work Gloves for Gardening Household
