Frameless Stencil Printer T1100 for SMD PCB Solder Pasting Process

Product Description

Frameless Stencil Printer T1100 for SMD PCB Solder Pasting Process
Specifications

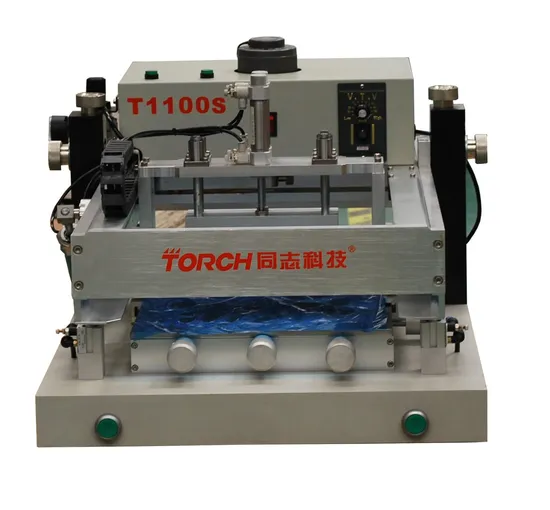

T1100 is a high accuracy semiautomatic printing machine. The operator only needs to press the double switch button at one time.
High precision semi-automatic screen printing machine T1100
T1100 provide security, operator just need to press double-switch operating button, the machine will complete the whole printing process automatically. When the printing process is completed, operating stuff take out of PCB board and put it in boxes or into pick and place machine directly, and then put another piece of PCB board into the operating bench, another round begins.
T1100 uses SMC, Panasonic, Omron and other imported components, using PLC to control internal procedures.
T1100 equips imported linear guiderail, it features easy to operate, high precision, easy adjustment and a wide range of usage.
T1100 employs advanced PLC program control, with high precision control and low fault rate;
T1100 template's lifting and scraper's UPS and downs are driven by cylinder. Air-inlet and air-outlet is equipped with speed control valve, the cylinder speed can be easily adjusted.
T1100 scraper movement is driven by the motor, motor speed can be adjusted by motor speed controller;
T1100 scraper support moves by high-precision linear guide rail to ensure smooth, precision and stable movement.
T1100 scraper is stainless steel material and floating structure to ensure the stress even in the printing process.
TypeT1100
Max printing size220 × 180mm, 220×240mm (optional)
Suggest template size350×400mm, thickness is 20mm
PCB thickness0.2-2.0mm
Table size300×300mm
Working press0.4-0.7 Mpa
Holes space of knock pin20mm screw:M5
Power supplyAC220V 50Hz
Max power60W
Adjusting rangeX axis +10mm ; Y axis ±10mm
Repeat accuracy±0.05mm
Ideal printing accuracy 0.4mm QFP; >0.4mm (ball diameter) BGA
Dimension740×554×400mm

Maximum print area	(300*400mm)
Adjusts to various size frames:	Frame holder accepts any size stencil frame up to (400*500m)
Adjustable dual squeegee pressure/speed:	Manual
Linear squeegee guide:	Yes
Squeegee material	stainless steel (other material can be ordered)
Adjusting accuracy	< 0.01mm
Repeat accuracy	< 0.03mm.
Ideal printing speed	500pcs/min
Accessories:	Thimbles 8 Support shelves 6 Inner hexangular spanners 1 Nuts and bolts 6
