High Temperature Soft Flow Fabric Dyeing Machine

Product Description

High temperature High pressure Jet Dyeing Machine
Product Description
High temperature High pressure Jet Duo Dyeing Machine is the classic jet dyeing machine model which has wider applicability. It is mainly used for dyeing and pretreatment of nature or synthetic fabric, mixed spined fabric (T/C,T/R,T/W), cotton, rayon, polyester, nylon, tencel, etc.
Special Features
- Classic design, wider applicability
- Ultra low lifting reel for very low tension of the fabric
- Fabric opening device to avoid crease marks
- Anti-twisting device
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Chamber capacity around 300 kg
- Available with up to 2 chambers per machine
- Liquor ratio starts at 1:6
- Fabric winch drive max. 600m/min, depending on fabric properties
- Adjustable winch speed
- Maximum operating temperature 140ºC
- Touch screen controller
- Electro-pneumatic operated valves
- Frequency controlled pump motor & winch
- Control cabinet in stainless steel
- Adjustable nozzle pressure
- Adjustable round nozzle
- Automatic seam detector
- Rope circulation control
- Water meter Fully automatic dosing
- Unloading winch & plaiter
Optional
- Second Dosing tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function

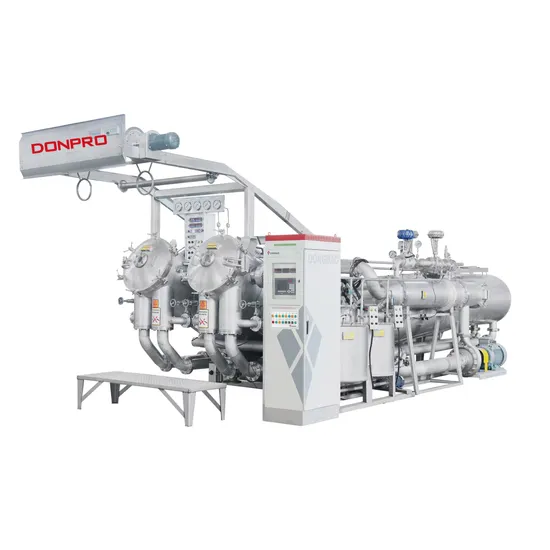

Machine Picture
