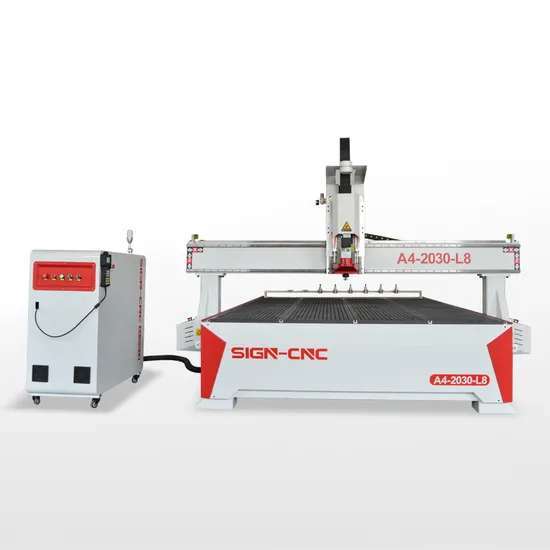

Atc CNC Router A4-2030-L8 Woodworking Router with 2000*3000mm Automatically Tools Change Working on Wood/MDF/Acrylics
Basic Info.
Spindle Layout
Vertical
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE
Customized
Customized
Condition
New
Color
Red
Product Name
Atc Wood CNC Router
Spindle Power
9 Kw Air Cooling Spindle
Working Table
Vacuum Table with T-Slot
Vacuum Pump
7.5 Kw
Working Size
2000*3000mm
Inverter Power
11 Kw
Motor
Servo Motor with Reducers
Control System
Ncstudio
Dust Collector
Double Cylinder Dust Collector
Guide Rail
Taiwan Hiwin Square Linear Rail
Marketing Type
New Product 2021
Max. Moving Speed
45000 mm/Min
Max. Working Speed
30000 mm/Min
Key Selling Points
Automatic
Transport Package
Wooden Case
Specification
2000*3000mm
Trademark
SIGN
Origin
Jinan City, Shandong Province, China
Product Description
Product DescriptionATC CNC Router A4-2030-L8 Woodworking Router with 2000*3000mm Automatically Tools Change working on wood/mdf/acrylics
Detailed Photos
Product Parameters
| Model | A4-1325-L8 | A4-1530-L8 | A4-2030-L8 |
| Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm |
| Z feeding | 300mm | ||
| Frame structure | Steel casting-welding | ||
| Type of table cover | Vacuum table with T-slot | ||
| Vacuum pump | 7.5kw | ||
| Z axis transmission | Ball screw and 25 square guide rails | ||
| X Y axis transmission | Taiwan 25 square guide rails + Helical rack | ||
| Max. Rapid Travel Rate | 45000mm/min | ||
| Max. Working Speed | 30000mm/min | ||
| Command Code | G code * .u00 * .mmg * .plt | ||
| Operating voltage | AC 380V/50Hz | ||
| Spindle power | HQD 9.0 KW air cooling spindel | ||
| Tool Magazine | 8 - 12 | ||
| Type of cooling | Air cooling | ||
| Spindle Speeds | 0-24000rpm/min | ||
| Drive motor type | servo moto | ||
| operating system | NCstudio | ||
| Dust Collector | 3kw with double bags | ||
| Lubrication system | Automatic | ||
| Supported software | Artcam software, Type3 software | ||
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | ||
| Warranty | Two year | ||
Application and Sample
Packaging & Shipping
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
