Agricultural Implement Towing Type Disc Harrow with Discs 26′′

Product Description

Product Description
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.

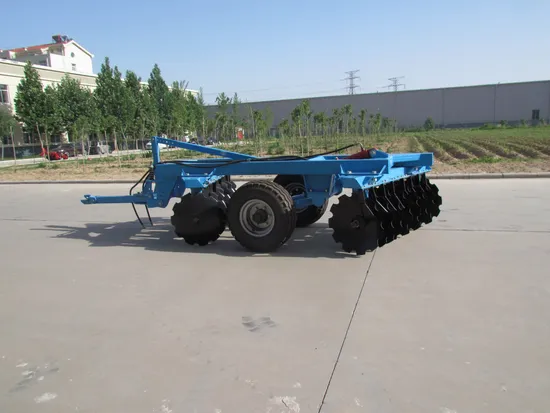

Detailed Photos

Product Parameters

Model	Number of disc	Size of disc	Working width (mm)	Working depth (mm)	Weight (kg)	Matched tractor (hp)	Note (Bearing Assembly)
1BZY-1.8	16	610x6	1800	150-200	1420	70-85	Grease or oil bath
1BZY-2.0	18	660x6	2000	180-220	1580	85-100	Grease or oil bath
1BZY-2.2	20	660x6	2200	180-220	1660	100-120	Grease or oil bath
1BZY-2.5	24	660x6	2500	180-220	2100	125-150	Grease or oil bath
1BZY-3.0	28	660x6	3000	180-220	2300	150-180	Grease or oil bath
1BZY-3.5	32	660x6	3500	180-220	2850	150-180	Grease or oil bath
1BZY-4.0	36	660x6	4000	180-220	3100	180-200	Grease or oil bath

Packaging & Shipping

Company Profile
Shandong Yuntai Machinery Co.,Ltd., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading exporter of agricultural machinery and accessories.
YUNTAI produce 20,000 sets tractor implements and 1,500,000 pcs of accessories annually and have its owe R & D team and strong production capacity.
YUNTAI produce agricultural machinery and accessories matched with 18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting, transporting and plant protection machinery. Main equipments are disk plow, disc harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts and so on.
YUNTAI company have advanced production lines of machining, welding, punching, forging, sand blasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the United States, Germany, France, Australia,Asia, Africa,etc.
YUNTAI is in Qihe Economic Development Zone, Dezhou city, Shandong Province. It is near to Jinan airport and Jinan railway station , From Jinan air port and Jinan west train station only takes 30 minutes by car.

Certifications
After Sales Service
Any question or problem welcome to contact us:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 30-50 days if no stock, it is according to quantity.

Q: Do you provide samples ?
A: Yes, we could offer the sample .

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery
Q: Which is your nearest port ?
A: QINGDAO
