2 Cavities Fully Automatic Pet 2L Bottle Blowing Machine

2 Cavities Fully Automatic Pet 2L Bottle Blowing Machine

US$27,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JS2000
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
Number of Cavity
2
Clamping Force
180kn
Mould Opening Stroke
130mm
Stretch Stroke
350mm
Max. Container Volume
2L
Max. Neck Size
40mm
Max. Bottle Diameter
110mm
Max. Bottle Height
350mm
Machine Weight
2.3t
Machine Size
2.6*2.2*2m
Transport Package
by Sea
Specification
SGS, CE
Trademark
JS
Origin
Made in China
HS Code
84773090
Production Capacity
1800-2000PCS/H

Product Description

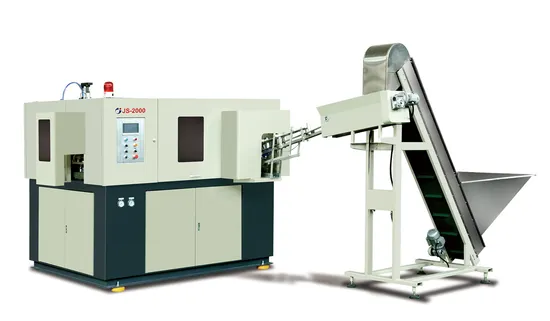

0.1-2L Two Cavities Fully Automatic Pet Bottle Blow Molding Machine
Bottle blowing machine JS-2000 is one specialty blows makes PET to model the bottle two step completely automatic to blow the bottle equipment, may blow system 2L most greatly, is suitable in blows the system carbonic acid beverage bottle, the mineral spring thermos, the agricultural medicine bottle, the cosmetics bottle and so on, this machine serviceability is broad, the price can be reliable, the stability is good, the security is good.
MACHINE PROPERTIES:
1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL UNIT IS COMPACT AND SOUND.
4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .
Technical Reference
Machine model JS2000 JS2000H JS2000B JS4000 JS4000H JS6000
Pcs/hr 2000 1200 1400-1800 4000 2200 6000
Bottle Volume L 0.2-2 0.2-2 1-5 0.2-2 0.2-2 0.1-0.7
Preform inner diamter MM 15-40 15-40 55 15-40 15-40 15-40
Max.bottle diameter MM 20-105 20-95 180 20-105 20-95 20-70
Max.bottle height MM 350 350 350 350 350 280
Cavity PC 2 2 2 4 4 6
Main machine size M 2.8*1.8*2.2 2.8*1.8*2.2 2.6*2.25*2.4 3.8*2.3*2.2 3.8*2.3*2.2 3.8*2.3*2.2
Weight T 3.0 3.0 3.3 4 4 4
