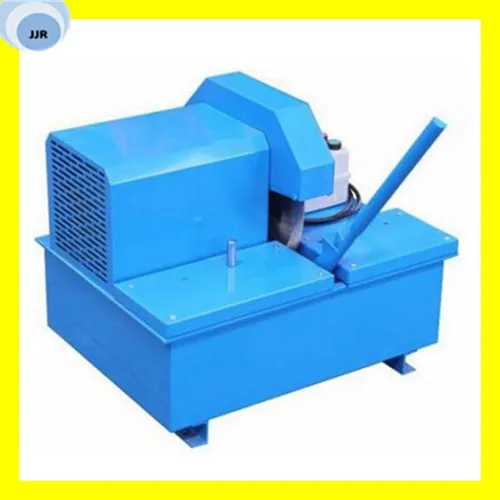

Portable Hydraulic Hose Cutting Machine

Product Description

portable hydraulic hose cutting machine
This hydraulic hose cutting machine is designed and developed combined practical cutting feature. When it cuts the tube, it has the features of rigid metal, small heat distortion, quick cutting, low wear, no crumb during cutting. It applies balanced feed system, which makes the stress more even during the cutting. The unique buffer gear makes the cutting more stable and safer. This cutting machine is suitable for cutting various mire-netted colloidal pipes, steel wire armored rubber hoses, lined pipe, and cotton thread pipes. It's ideal corollary equipment for hose repairing and manufacturing factory.

Operation instruction of cutting machine
Plug in. Check whether the direction of rotation of the cutting blades is consistent with the direction of arrow.(Reversing prohibited)Adjust the positioning cock according to the diameter of the cut pipe in case there would be slant and slice problems.Put the cut pipe in place. Push the feed lever. Fulfill the cutting process.

Cutting range	6-51mm
Operation mode	Manual
Power	3KW/4KW
Voltage	220V/380V
Efficiency	1500 pieces/hour
Dimension of machine	640*480&480mm
Dimension of packing	700*530*580mm
Weight	55kg
