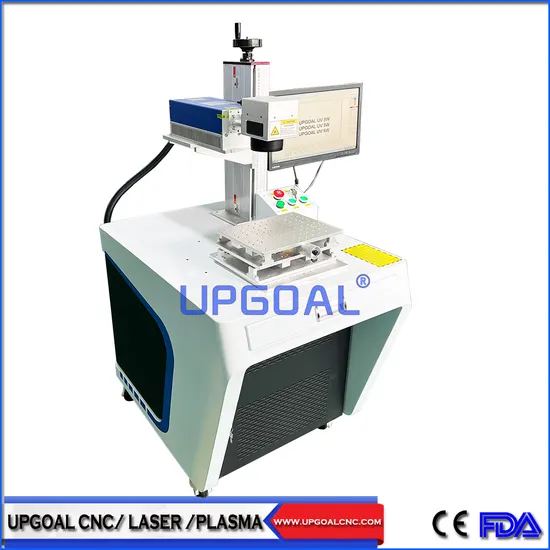

5W UV Laser Marking Machine for Ipu Animal Egr Tag/ Leather/Silicone Bracelets

Product Description

5W UV Laser Marking Machine for IPU Animal Egr Tag/ Leather/Silicone Bracelets
Applications
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Features
UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can acachieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power.
Main Parts
1. Adopting UV laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of 5W UV laser source(Gainlaser) is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. With famous SINO-GALVO SG2206(355nm)serious galvanometer & high speed scanning length(F=160) has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.
3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
4. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.
5. Marked graph and characters is permanent , will not regression due to friction.
6. Auto focusing, auto lifting Z-axis, convenient for different thickness materials marking.
7. With 2D platform, XY two dimension moving, no need move the material by manual, improving marking precision.
8. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
9. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
10. One piece design of control cabinet and marking table, small cover area.
11. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
12. OptionalIndustrial computer
Technical Parameters

UV Laser output power	5W( Brand: Gainlaser, China, air cooling)
Life of the UV laser source	100,000 hours~150000 hours
Laser type/wave length	355nm
Effective marking area	110×110mm
Beam quality	<1.1
Marking speed	400 characters per second
Repeated accuracy	±0.001mm
Minimum character	0.1mm
Minimum line width	0.015mm
Galvanometer	High speed digital galvanometer (SINO-GALVO,SG2206, 355nm)
Control system	Original EzCad controller
Control interface	Standard USB port
Focusing	Auto
Working table	Cast aluminum table with two-dimension table
Rotary device	With
Laser repetition frequency	20kHz~80kHz
Machine power	800W
Voltage	AC220V/110V, 50/60Hz, single phase
Computer when delivery	Desktop, windows 7/10,32/64bits, industrial computer
Support format	PLT, BMP, DXF, JPG, TIF, AI etc

Reference Sample Photos
Reference Working Videos
https://youtu.be/eUMijhcgF2I
https://youtu.be/l54IdMYswRs
Accessories & packing

For more information, just feel free to contact us!
