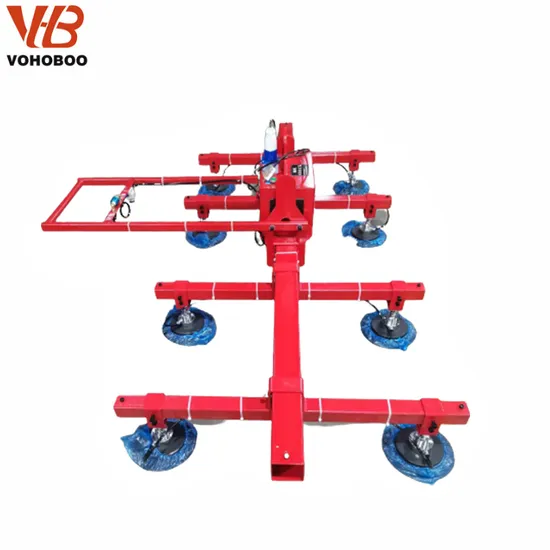

Cheap Price Hand Marble Suction Cup Vacuum Lifter for Metal Plate
| US$699.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VHB
Cup Quantity
Optional
Product Name
Vacuum Lifter
Load Capacity
400-1000kg
Sucker Diameter
300mm
Number of Suckers
4/6/8/10
Tilt Angle
90
Rotation Angle
360
Tilt&Rotation Type
Handle
Keyword
Suction Plate Lifter
Usage
Metal Sheet Glass Moving
Application
Moving Metal Material
Function
Loading and Unloading Stone Slabs
Material
Stainless Steel
Ambient Temperature
-15-40°c
Charger
Yes
Charging Time
6-8h
Transport Package
Standard Export Packing
Specification
400-1000kg
Trademark
VOHOBOO
Origin
Hubei, China
HS Code
8205590000
Production Capacity
5000sets Per Month
Product Description
Product DescriptionVacuum lifters are the ideal way to make production processes and transports easier.Whether you want to transport steel,glass-elements,stone or wood...from A to B you will find the perfect solution here at RAYVANBO - the leader of sophisticated vacuum transport techniques.
Vacuum glass suction crane is used to absorb curtain wall glass with lifting tools such as crane, which is widely used in the field of glass curtain wall installation, freight and logistics.
Vacuum lifting equipment is almost omnipotent: whether you need to stack boxes, or load barrels onto trucks, or stack metal plates or wood, or carry stones or furniture -using vacuum suction crane to carry will always be your best handling solution.
Vacuum Lifter Features:
High efficiency: improve work efficiency;
Cost saving: reduce production labor costs;
Reduce risk: can effectively reduce the safety risks of operators;
Simple operation: The device is simple to operate.
Product Details
Product Advantages
Product Parameters
| Load Capacity(kg) | 400 | 600 | 800 | 1000 |
| Sucker diameter(mm) | 300 | 300 | 300 | 300 |
| Number of suckers | 4 | 6 | 8 | 10 |
| boundary dimension(mm) | 800*850 | 1800*850 | 1800*1750 | 1800*2600 |
| Packing size | 1230*1030*370 | 1230*1030*370 | 1230*1030*370 | 1230*1030*370 |
| Tilt angle | 90° | 90° | 90° | 90° |
| Rotation angle | 360° | 360° | 360° | 360° |
| Net weight(kg) | 86kg | 98kg | 110kg | 122kg |
Product Real Shot
Product Application
Packaging & Shipping
