API 6A High Pressure Fls-R Fracturing Ball Screw Operation Gate Valve with Flange Type for Drilling Equipment

Product Description

Product Description

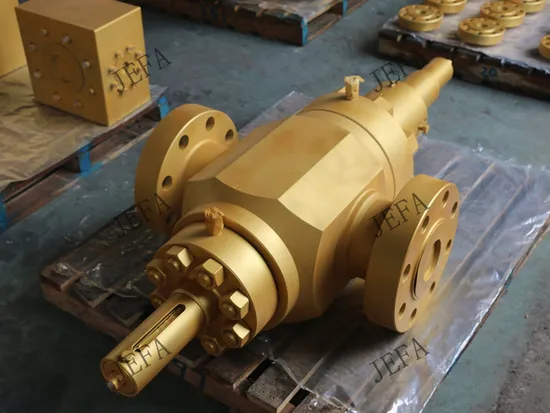

The ball screw gate valves is a type of large bore gate high pressure valve which were improved from Cameron FLS-R gate valve, it's the main component of frac tree, valve body, valve cover, gate plate, ball screw transmission mechanism and other components. The valve body and valve cover are usually made of strong and durable metal materials to withstand high pressure and harsh working conditions. The gate plate moves up and down within the valve body to achieve the opening and closing of the valve. The ball screw transmission mechanism can precisely control the movement of the gate plate.
Features:
1. Precise control: The design of the ball screw enables more precise and controllable switch operations of the valve, allowing for fine adjustment.
2. Reliable sealing: Adopting high-quality sealing materials to ensure good sealing performance under various working conditions and effectively prevent medium leakage.
3. Wear resistance: The internal components are specially treated to have excellent wear resistance, prolonging the service life of the valve.
4. Low operating torque: The operation is effortless, reducing the labor intensity

Product Name	API 6A High Pressure Fls-R Fracturing Ball Screw Operation Gate Valve with Flange Type for Drilling Equipment
Working Pressure	2000PSI~20000PSI
Working Temperature	K.L.P.R.S.T.U.V
Nominal Diameter	3-1/16"~ 7-1/16"
Material Class	DD,EE,FF,HH
Specification Level	PSL1~PSL3
Performance Level	PR1 PR2
Manufacture Standard	API 6A

Company Profile
JEFA specializes in the design, manufacturing, and marketing of API 6A wellhead and Christmas tree equipment, valves, and wellhead control equipment. Its facilities comprise a steel forging plant, machining centers, a specialized heat treatment facility, assembly lines, and painting lines. Holding certifications like API 6A, API 16C, ISO 45001, ISO 14001, and ISO 9001, JEFA prides itself on supplying quality products punctually and in complete compliance with customers' requirements. With 90% of its production exported to over 10 countries including the USA, Canada, the Netherlands, Australia, Russia, and others, JEFA is dedicated to providing outstanding customer service and high-quality products and welcomes inquiries of all sizes.
Certifications
Workshop
JEFA's facility encompasses a steel forge plant, a 38,000 sq.ft machining workshop, a 20,000 sq.ft heat treatment facility with six furnaces, and a 16,000 sq.ft valve machining, assembly and painting line workshop.
Exibition Photos
Packaging & Shipping
FAQ
Q:In addition to products, what additional services do you offer?
A:Our company supports after-sales service, after you receive the product warranty for one year.
Q:How long does it take to ship after placing an order?
A:Usually 2-3 months, depending on the quantity you order.
Q: Do your products meet international quality standards?
A: Yes, our products are produced and tested in strict compliance with API international standards to ensure that every product can meet the high quality requirements. We have a complete quality control system, from raw material procurement to finished products, every link has a strict quality inspection process.
Q: How do I know if your product is right for my specific application?
A: We provide professional technical support services, can recommend the most suitable product model and specification according to your specific application needs. Our sales engineers have extensive industry experience and are able to provide personalized solutions and recommendations.
Q: What services can you provide if I need a customized product?
A: We offer a full range of customization services, including but not limited to customization of special sizes, materials, pressure levels and connections. Our team of engineers will work closely with you to understand your specific needs and provide a one-stop service from design to production.
