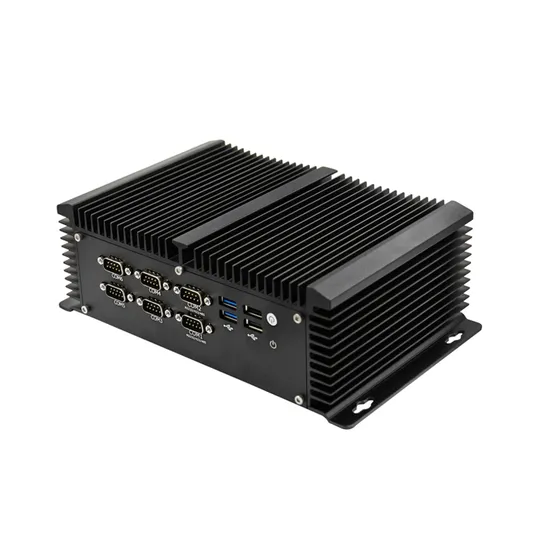

Wholesale Industrial Core I5-4278u Fanless Mini PC with Rich I/O Ports

Product Description

Presenting the X86 NUC Core i5-4278U Mini-PC: A Powerhouse with Dual LAN, 8+128 GB Storage, Perfect for Industrial Applications! This Linux-based, fanless micro mini PC delivers unparalleled performance in compact form.
Main Products Feedback Product Description Distinctive Features:
Equipped with 6xCOM ports, including 2 versatile RS485/422 ports
Featuring dual Intel i210/i211 Gigabit LAN for robust connectivity
Innovative one-key restore, reliable watchdog function, and diskless boot capability
Energy-efficient and completely fanless design
Engineered for extreme conditions: Industrial-grade performance from -20ºC to 70ºC
All essential connectors conveniently integrated on-board

PC
CPU	Intel® Core i5-4200U/4300U, 2 Cores, 4 Threads, Base 1.6GHz, Turbo 2.6GHz, Fanless
CPU Optional	Intel® Core i7-4500U/4650U, 2 Cores, 4 Threads, Base 1.8GHz, Turbo 3.0GHz, Fanless
Memory	1xDDR3L SODIMM, Max 8GB
Storage	1x MSATA 1x HDD/SSD
Display	1x HDMI, 1x VGA
Network	2x GbE RJ45 Intel i211/i210
I/O	2x USB3.0, 6x USB2.0, 2xLAN(GbE RJ45 Intel i211/i210), 6xCOM(2 of them supports RS485/422), 1x HDMI, 1xVGA, 1x Power Button, 1x3.5mm Jack, 1x Mic in, 2x Antenna port, be used for WIFI/3G/4G
Expansion Slot	1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth
BIOS	AMI EFI BIOS
WDT	Support hardware reset (256 level, 0-255 sec)
Operation System	Windows® 7/8/10,WES 7/10,LINUX
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤15W
Enclosure
Material	Aluminum Alloy
Color	Black
Operating Environment
Temperature Range	Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow
Relative humidity	10%~95% , non-condensing
Packing Details
Net weight	1.5 kg
Gross weight	2.5 kg
Product Dimension	224 x 150 x 83.5 mm
Packing size	30*20*12cm
Accessories	Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws
Other
Mounting (options)	Wall mounting
	Embedded mount
Warranty	3 years warranty
