Smart Mini CO2 Monitor Air Quality Detector for Home, Office, Greenhouse and School

Product Description

Product Description

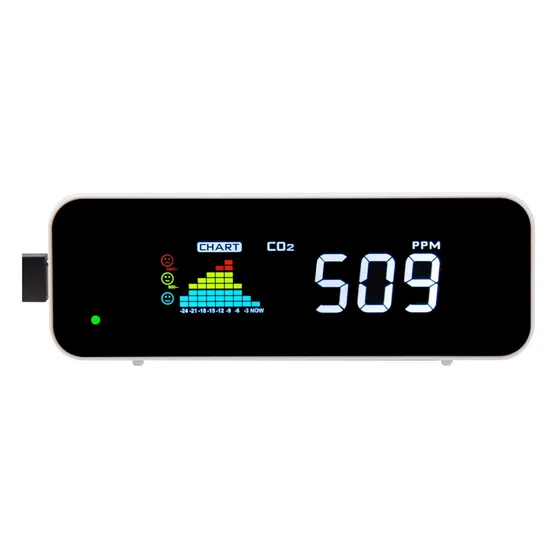

With built-in Dual Beam NDIR technology to improve long term stability, AGn12 is a smart desktop mini CO2 monitor, designed to accurately track air quality within CO2 and temperature. The portable CO2 detector size of a palm is easy to carry and can detect the air quality in schools, office buildings, hotels, hospitals, laboratories and anywhere that high levels of carbon dioxide are generated.
Basic info:

Model NO.	AGn12	Power Source	USB Type-C
Trademark	OEM/ODM	Origin	China KunShan
Sensor Type	Dual-Beam NDIR	HS Code	9027100090
CO2 Range	0~5000ppm	Production Capacity	80000 Pieces/Year
Temperature Range	0~50ºC(32°F to 122°F)	Transport Package	Carton
Emoji	3	Package Type	1 pcs/Color Box
Battery	External	Weight	103g Device only
Single Package Size	120*66*33mm (4.7*2.6*1.3inch)

Feature:
Ø NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability
Ø CO2/Temperature; Tracer
Ø CO2 concentration history chart display
Ø 3 emoji show the CO2 concentration status
Ø 3-color LED (green / yellow / red) gradually changes with CO2 concentration
Ø Adjustable three-stage backlight function
Ø Only one key, easy for use.
Operating Instructions
Initial Setup: When first unboxing, plug in the unit to the included Type-C USB (or one of your own to almost any cell phone charger or USB power source). Then LCD display shows a countdown from 15 seconds for warm up .Once the countdown is complete, your product is ready to use.
Three Color Indicator LED:
Three LED will indicator the CO2 concentration,when CO2<800ppm, Green LED will on, LED will show Yellow when CO2 is 800~1200ppm; LED will show Red when CO2 >1200ppm.
KEY Function:
When warm up count down finish, the main display will show the CO2 value, press "Function Key" will switch the LCD brightness levels. Press and hold "Function Key" for 3 seconds to enter MENU setting.
Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.1% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Temp Measurement
Operating Temperature	32°F to 122°F (0°C -50°C)
Display Resolution	0.2°F (0.1°C)
Accuracy	±1°F (±0.5°C)
Response Time	<20min (63%)
Power Requirements	160mA Peak, 15mA average at 5.0V
Dimension	120*91.2*27mm (4.7*3.6*1.1inch)
Weight	103g Device only, AC Adapter not included
