UV/300 PVC I Njection Molding Machine
| US$1.00-2.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UV/300
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y
Product Description
PVC IMM :Cooling fan installed on barrel,Widened protective door.,Increased motor.

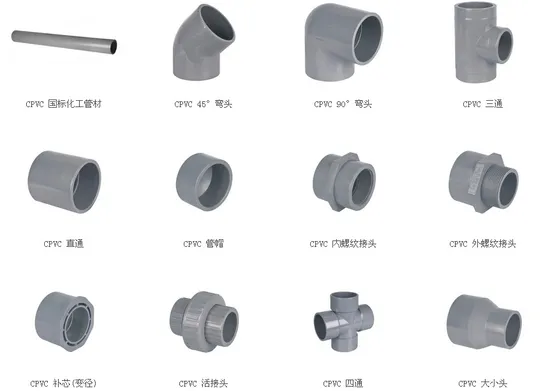

The main production of PVC material pipe fittings
Parameters:
| PVC STYLE SPECIFICATION | UV/300 | |||
| SCREW TYPE | A | B | C | |
| Injection Unit | ||||
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D ratio | L/D | 24 | 22 | 20.3 |
| Shot volume(theoretical) | CM3 | 676 | 805 | 945 |
| Injection weight(PVC) | g | 861 | 1026 | 1204 |
| Injection rate | g/s | 314 | 372 | 437 |
| Injection pressure | MPA | 202 | 170 | 145 |
| Screw speed | rpm | 130 | ||
| Clamping Unit | ||||
| Clamping force | KN | 3000 | ||
| Open stroke | mm | 610 | ||
| Space between tie-bars(W*H) | mm | 650*650 | ||
| Max mould height | mm | 630 | ||
| Min mould height | mm | 200 | ||
| Ejector stroke | mm | 170 | ||
| Ejector force | KN | 70 | ||
| Others | ||||
| Max pump pressure | MPA | 16 | ||
| Pump Motor power | KW | 33 | ||
| Heating power | KW | 18.3 | ||
| Numbers of heating area | Segment | 3+1 | ||
| Machine dimension(L*W*H) | M | 6.55*1.72*2.45 | ||
| Oil tank cubage | L | 385 | ||
| Machine weight | TON | 10 | ||
Configuration List:
| Name | Brand |
| Computer | KEBA(AUSTRIA) or EST |
| Servo Drive | INOVANCE(CHINA) |
| Servo Pump | SUNNY(USA) / SUMITOMO(JAPAN) |
| Servo Motor | PHASE(ITALY) |
| Electro-hydraulic Proportion valve | HNC (Taiwan) |
| Stroke transducer | NOVO or Miran(GERMANY)/GERFRAN(ITALY) |
| Breaker | Schneider (FRANCEN)/Siemens(GERMANY) |
| Contacts | Schneider (FRANCEN)/Siemens(GERMANY) |
| Switch | Schneider (FRANCEN)/Siemens(GERMANY) |
| Hydraulic Direction Valve | Vickers (USA) or Rexroth (GERMANY) |
| Plasticing Motor | DINAMIC(ITALY) or STF(ENGLAND) |
| Hydraulic Hose | MANULI(ITALY)/CONTINENTAI(GERMANY) |
| Plasticing speed sensor | OMRON |
| Sealing ring | HALITE or TREIIEBORG(UK or GERMANY) |
