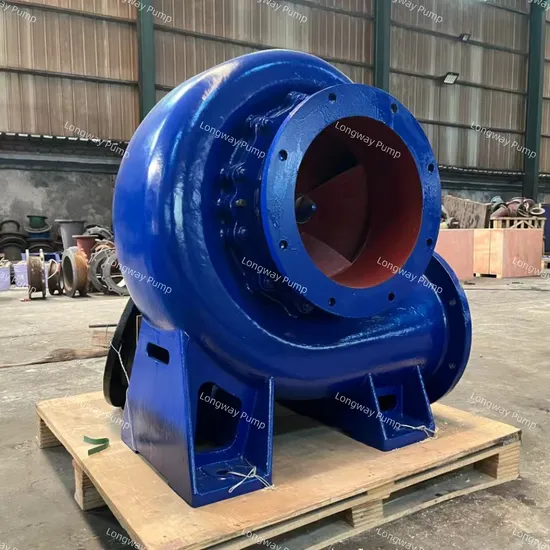

HBC/HW Centrifugal Water Pump for Shrimp, Irrigation and Agriculture (20HBC-40 500HW-6)
| US$300.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
20HBC-40/ 500HW-6
Max.Head
<10m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Semi-Open
Usage
Pump
Size
as Per Model
Shaft
Ss
Impeller Material
Cast Iron
Transport Package
Wooden Cases
Specification
20HBC-40/500HW-6
Trademark
LONGWAY
Origin
Jiangsu
HS Code
8413709910
Production Capacity
2500PCS/Year
Product Description
HB centrifugal pumpThis HB/HW pump is designed for field irrigation,And are widely used to Convey water to field.
The pump is widely welcomed by clients in Ecuador, Australia, Indonesia , Malaysia and other markets. 1. Agricultural irrigation horizontal, single-stage, single-suction pump for conveying liquids similar to water. Simple structure and high efficiency. 2. Transmission mode: Direct rotation and variable speed rotation, commonly used power: motor and diesel engine. 3. Structure of centrifugal water pump: pump cover, impeller, pump body, pump shaft and shaft sleeve are the main parts; accessories include inlet and outlet bends, bottom valve and pulley or coupling. Here is agricultural irrigation horizontal water pump mixed flow pump diesel pump set
20HBC-40/500JW-6 Has the following technical data
1) Pump diameter; From 20" or 500mm
2) Capacity; 1980cubic meter per hour
3) Head; 5-10m
4) power; 95kw
| Model | Capacity (M 3 /h) | Head (M) | Speed (r/min) | Efficiency (%) | Motive power (kW/hp) |
| 6HB-35 150HW-5S | 180 | 5 | 1450 | 80 | 4/5 |
| 8HB-35 200HW-8S | 360 | 8 | 1450 | 82 | 11/15 |
| 10HBC-30 250HW-7S | 450 | 7 | 980 | 83 | 15/20 |
| 12HBC-40 300HW-7S | 780 | 7 | 980 | 84 | 22/30 |
| 14HBC-40 350HW-7S | 1000 | 8 | 980 | 85 | 30/40 |
| 16HBC-40 400HW-7S | 1260 | 7 | 730 | 86 | 55/75 |
| 20HBC-40 500HW-6S | 1980 | 6 | 580 | 86 | 95/130 |
| 26HBC-40 650HW-7S | 3660 | 7.6 | 485 | 90 | 130/175 |
