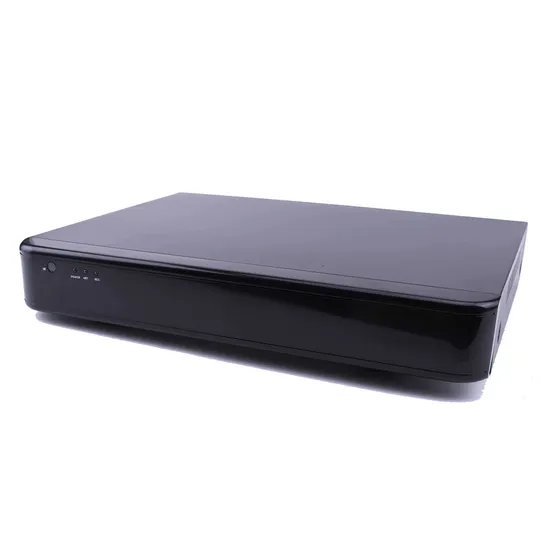

2MP/3MP/4MP/5MP CCTV IP Ahd Tvi Cvi Camera Hybrid 4CH Digital Video Recorder DVR Xvr HVR
| US$33.00-36.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
HB-XVR5MN2H04
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDMI
Video Input/Output
4 Channel
Audio Input/Output
4 Channel
Remote Control
With Remote Control
SATA
8tb X 2
Hybrid Mode
Ahd+Tvi+Cvi+CVBS+IP
Utc
Coaxial Control
PTZ
Yes
Alarm
4 Channel
Resolution
5MP-N
WiFi/3G/4G
Support
Transport Package
Neutral Packing
Specification
335*255*50 mm
Trademark
HICOTEK/OEM/ODM
Origin
China
HS Code
8525909090
Production Capacity
5000PCS/Month
Product Description
Features:4CH 5M-N (TVI/AHD/CVI/CVBS/IP) Hybrid DVR
Video Preview: 4CH Mixed 5MP Cameras Input
Video Output: 1x HDMI,1x VGA,1x CVBS
HDD: 2 SATA, MAX 6TB Each
| Model NO. | HB-XVR5MN2H04 |
| XVR System | |
| Type | 4CH 5M-N Hybrid DVR |
| Compression Method | H.265/H.264 |
| Main Processor | 3520DV400+2828_2G |
| Operating System | Embedded LINUX |
| HDD | 2 SATA, MAX 6TB Each |
| Display & Recording | |
| Video Input | 4CH |
| Encode Capacity | 1.AHD/TVI:4CH 5M-N@8fps recording 2. HVR:2CH 5M-N@12fps Analog + 2CH 1080P@25fps IP recording 3.NVR:4CH 1080P@25fps IP recording |
| Search Mode | Time, Date, Alarm, Motion Detection, Exact Search |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out |
| Playback & Backup | |
| Decode Capability | MAX 4CH |
| Sync Playback | 1.AHD/TVI: 2CH 5M-N@8fps playback 2.HVR:2CH 5M-N@25fps playback 3.NVR:4CH 1080P@25fps playback |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Backup Mode | USB Device/DVD/CD/Network |
| Video | Alarm | Audio | |
| Video Output | 1x HDMI,1x VGA,1x CVBS |
| Audio | 4CH |
| Alarm | 4CH |
| Network | |
| Interface | RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP |
| CMS Software | Support |
| Cloud Support | iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari |
| Language | 28 kinds of Languages |
| Smart Phone | Iphone, Ipad, Android, Android Pad |
| General | |
| Voltage | DC 12V |
| USB Port | 2 USB2.0 |
| PTZ | Pelco-D, Pelco-P |
| RS485 | YES |
| Size | 335*255*50 mm |
| Weight | 3.0 Kgs (Without HDD) |
