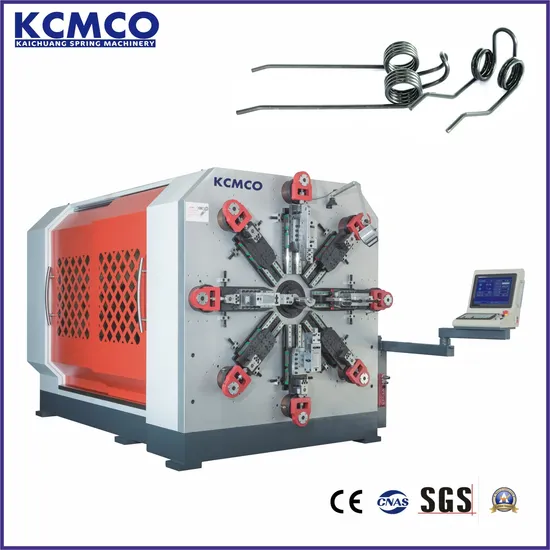

KCMCO-KCT-1280WZ 8mm 12 Axis Camless CNC Versatile Clutch Spring Rotating Forming Machine

Product Description

Product Description
1.1280WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, , the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis.
2. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; The damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate
3. The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.
4. Feeding system
The feeding system are equipped at the rotation system of the machine, it has 4 pairs feeding roller, 2 rollers as one pair, different wire size need different feeding rollers, the computer control the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit.
Our advantages:
1. The factory has about 15 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in our company.
5. Over 150 skilled worker, 48 technicians and one group of 20 engineers.
6. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia, Turkey)
Africa (South Africa, Egypt, Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
Give your project to us, we "KCMCO" are going to do the best profession to you
