Carbon Steel Welded Pipe ERW Tube Mill Production Line

Product Description

Carbon Steel Welded Pipe ERW Tube Mill Production Line
During the diameter changing, the whole complete forming line does not need to change the roll in compared with before precise forming roll changing. Then, the investment for the roll can be saved, which is suitable for the large diameter pipe mill.
During the diameter changing, the adjustment of roll is automatic too. It only needs to input the diameter, pipe thickness, material and other parameters in the PC. Then, the entire roll will be automatically adjusted to the right position. Then, the machine can be started directly to product. A lot of time can be saved for the roll changing to let the variety diameters pipes production in little quantity to be possible. It improves the machine efficiency. Besides, automatic adjustment can make the adjustment accurate, decrease the error on the manual adjustment, improve the qualified rate and the economic benefit.
Certainly, the pipe shape from the automatic adjustment can be not very perfect at first using. Then it needs the micro-adjustment. The micro-adjustment in our company is convenient too. The hand type controller can be used to adjust the roll position.
This kind of mill can produce API grade pipe and the normal pipe and structure pipe.
Model:
1. Φ108 - Φ219 Mill,Thickness: 2-12mm, Highest Material: X80
2. Φ114 - Φ273 Mill,Thickness: 2-14mm, Highest Material: X80
3. Φ127 - Φ325 Mill,Thickness: 3-16mm, Highest Material: X80
4. Φ168 - Φ426 Mill,Thickness: 3-18mm, Highest Material: X80
5. Φ219 - Φ508 Mill,Thickness: 4-20mm, Highest Material: X80
6. Φ273 - Φ630 Mill,Thickness: 4-22mm, Highest Material: X80
7. Φ325 - Φ711 Mill,Thickness: 5-25mm, Highest Material: X80
Production Process:

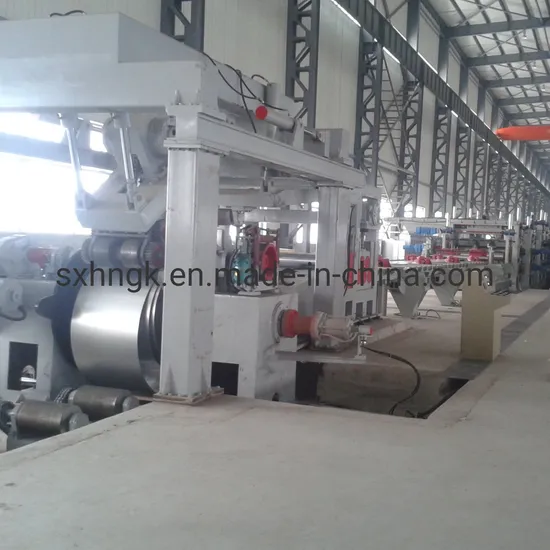

Loading Coil - Uncoiling - Leveling - Cutting and Welding - Accumulator - Precise Leveling - Forming - HF Welding - Water Cooling - Online UT Detector - IF Annealing - Air Cooling - Water Cooling - Sizing - Flying Cut - End Facing and Beveling - Hydrotester - Offline UT Weld and Pipe Inspection - Weighting, Measuring, Marking - Pipe Collection
219mm ERW Welded Pipe Mill without Roll Changing was successfully commissioned in Hengshui Jinghua Pipe Manufacturing Co., Ltd.
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.
Our Factory
Our Customer
Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
